The mining industry relies on robust, efficient, and dependable pumping equipment to handle some of the most challenging fluids encountered in industrial operations. From abrasive mineral slurries and tailings to thickened sludge, flotation concentrates, and chemical process media, mining applications demand pumps capable of delivering consistent performance under demanding operating conditions.

Progressive cavity pumps (PC pumps) are a versatile solution for many of these applications. Their ability to handle viscous fluids, abrasive suspensions, and media containing solid particles makes them a valuable option for mineral processing plants, tailings management systems, and wastewater treatment facilities...

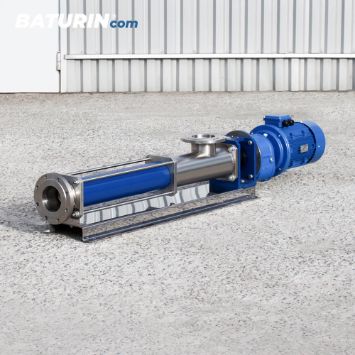

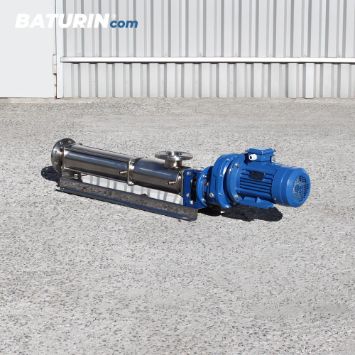

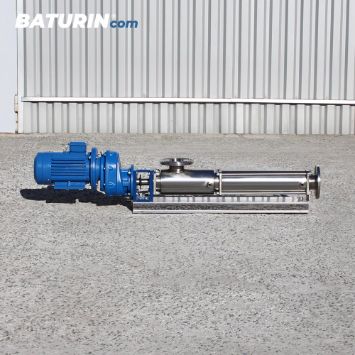

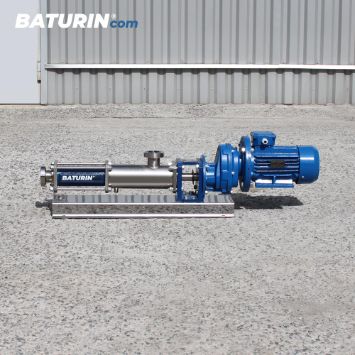

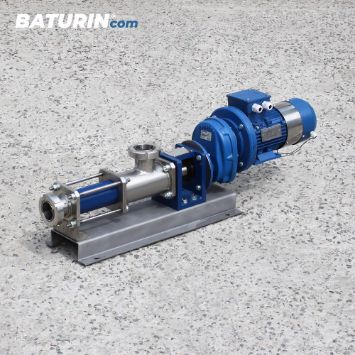

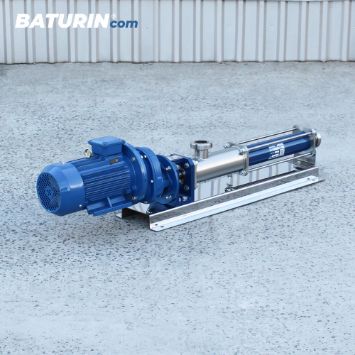

The BN031S02FYBSX screw pump is designed for pumping a saltpeter solution.

PUMP DESCRIPTION:

Liquid - Emulsions
Pump Type - Horizontal
Flow Rate (max) – 0.5 m3/h / 2,2 gpm
Differential Pressure - 6 bar / 87 psi
Rotor Speed - 256 rpm
Sealing Type - Mechanical BMS-025
Joint Type - BN-08
Inlet - Hopper inlet neck
Outlet - 50 mm / 2” nut
Pump Housing - AISI 304
Rotor - AISI 304
Stator - NBR
Base Plate - AISI 304
Drive Type - Gear-Motor
Power - 0,75 kW / 1 hp
Electrical Supply - 380V / 50 Hz / 3-ph
Protection Rating – IP55

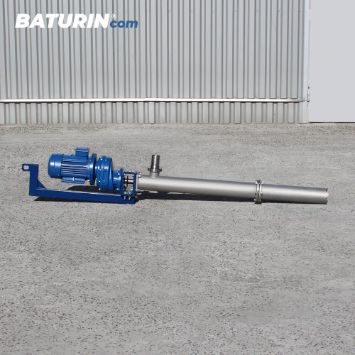

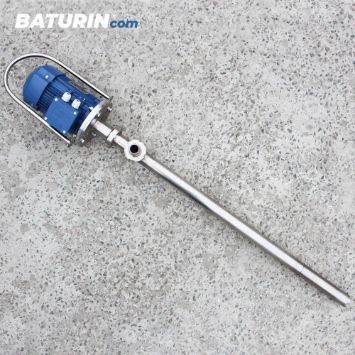

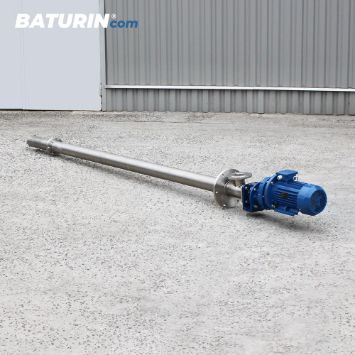

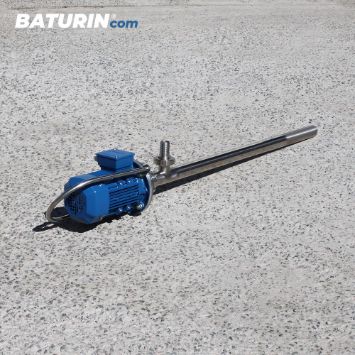

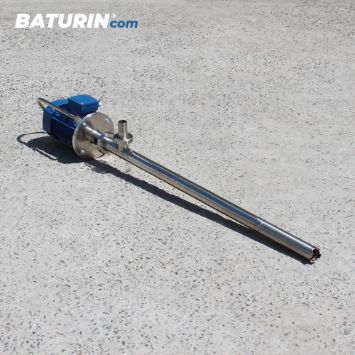

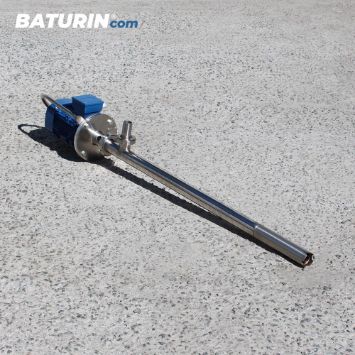

The BATURIN BT020S01FYL is specifically engineered for efficient unloading of standard drums containing viscous and high-density liquids.

PUMP DESCRIPTION:

Liquid -Liquid Fertilizers
Pump type - Vertical
Submersible Length - 1200 mm / 48"
Mounting Type - Handle
Flow Rate (max) - 3 m3/h / 13 gpm
Differential Pressure - 4 bar / 58 psi
Rotor Speed - 1000 rpm
Drive Shaft Sealing - Mechanical
Inlet - 50 mm / 2"
Outlet - 25 mm / 1"
Housing – AISI 304
Rotor - AISI 304
Stator - NBR
Motor - 1.1 kW/ 1.5 hp / 400V / 3-phase

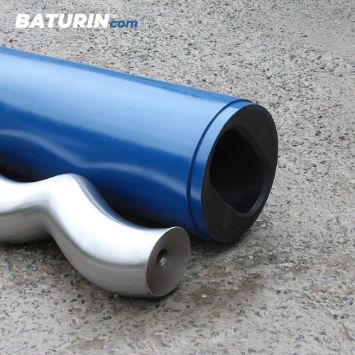

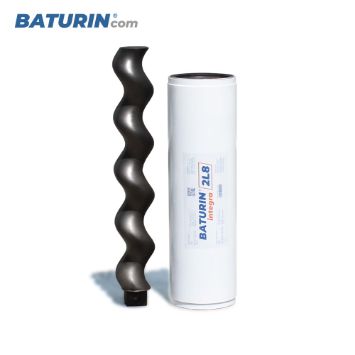

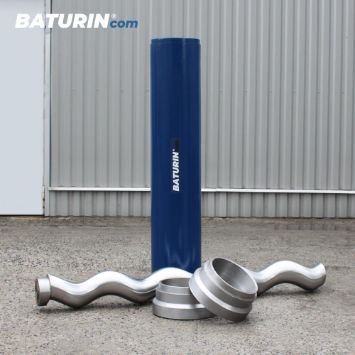

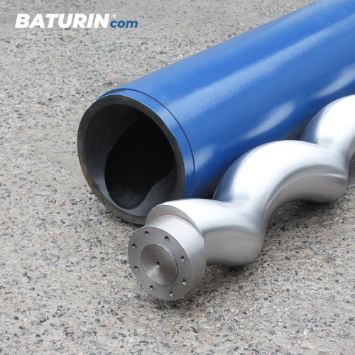

BATURIN ® BN125L01 Rotor & Stator for Progressive Cavity Pumps

SPARE PARTS DESCRIPTION:

• Stator BN090S2.5 - elastomer (NBR)
• Rotor BN090S2.5 - AISI 304
• Maximum outlet pressure - 217psi / 1.5 MPa
• Capacity - 176 GPM / 40 m3/h

BATURIN ® BN125L01 Rotor & Stator for Progressive Cavity Pumps

SPARE PARTS DESCRIPTION:

• Stator B125L01 - elastomer (NBR)
• Rotor B125L01 - AISI 304
• Maximum outlet pressure - 174 psi / 1.2 MPa
• Capacity - 1000 GPM / 240 m3/h

BATURIN ® Plug-in Shaft for Progressive Cavity Pumps BN038S01/S02/L01, BN031S03/S04

SPARE PARTS DESCRIPTION:

• Plug-in Shaft - BN-10
• Connection Type - BN-10
• Material – AISI 304

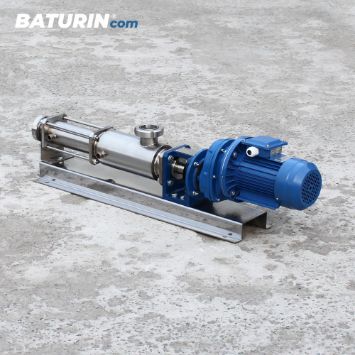

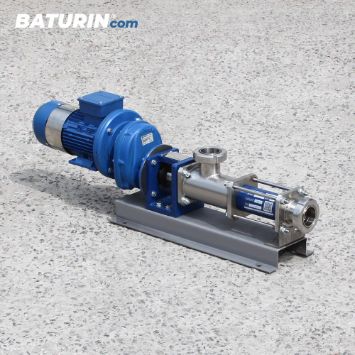

The BN031L01FY screw pump is designed for pumping liquid sauces.

PC PUMP DESCRIPTION:

• Liquid - Liquid sauces
• Pump Type - Horizontal
• Flow Rate (max) – 2.4 m3/h / 10,5 gpm
• Differential Pressure - 4 bar / 58 psi
• Rotor Speed - 358 rpm
• Sealing Type - Mechanical BMS-025
• Joint Type - BN-08
• Inlet - 50 mm / 2” nut
• Outlet - 50 mm / 2” nut
• Pump Housing - AISI 304
• Rotor - AISI 304
• Stator - NBR
• Base Plate - AISI 304
• Drive Type - Gear-Motor
• Power - 2,2 kW / 2.99 hp
• Electrical Supply - 380V / 50 Hz / 3-ph
• Protection Rating – IP55

BATURIN ® BT020S01 Rotor & Stator for Progressive Cavity Pumps

SPARE PARTS DESCRIPTION:

• Rotor & Stator Type - BT020S01
• Differential Pressure - 4 bar / 58 psi
• Stator Elastomer – NBR
• Rotor Material - AISI 304

BATURIN ® Coupling Rod for Progressive Cavity Pumps BN038S01/S02/L01, BN031S03/S04

SPARE PARTS DESCRIPTION:

• Coupling Rod - BN-10
• Connection Type - BN-10
• Material – AISI 304

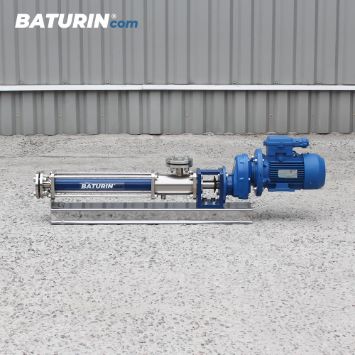

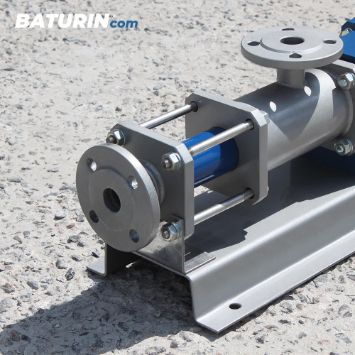

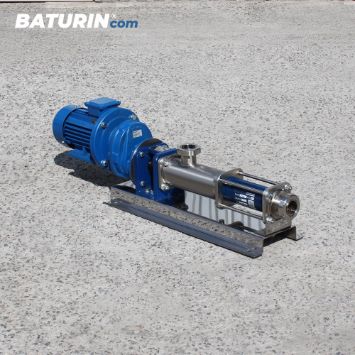

Progressive Cavity Pump BN031S02FYX is designed for pumping liquid and viscous emulsions.

PC PUMP DESCRIPTION:

• Liquid -Emulsions
• Pump Type - Horizontal
• Flow Rate (max) – 0.5 m3/h / 2,2 gpm
• Differential Pressure - 6 bar / 87 psi
• Rotor Speed - 256 rpm
• Sealing Type - Mechanical BMS-025
• Joint Type - BN-08
• Inlet - 50 mm / 2” nut
• Outlet - 50 mm / 2” nut
• Pump Housing - AISI 304
• Rotor - AISI 304
• Stator - NBR
• Base Plate - AISI 304
• Drive Type - Gear-Motor
• Power - 1,5 kW / 2.01 hp
• Electrical Supply - 380V / 50 Hz / 3-ph
• Protection Rating – IP55

BATURIN ® Full Set of Spare Parts for Progressive Cavity Pump BN031L01FY

SPARE PARTS DESCRIPTION:

• Plug-in Shaft - BN-08
• Coupling Rod - BN-08
• Repair KIT - - BN-08
• Rotor - 08
• Connection Type - BN-08
• Material – AISI 304

BATURIN® BZ-36 Universal Sealed Joint Built for Severe-Duty Applications

SPARE PARTS DESCRIPTION:

• Joint - BZ-36
• Connection Type - BZ-36
• Material – AISI 304 / NBR

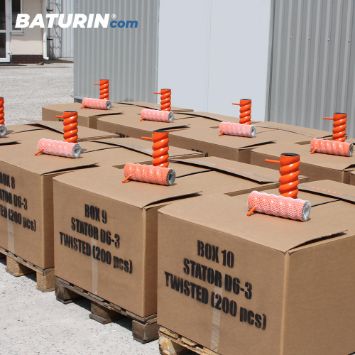

Used for gypsum and cement-sand mixtures, putties, adhesives, and self-leveling compounds.

SPARE PARTS DESCRIPTION:

• Weight - 2.43 kg
• Stator length - 273 mm / 10.74 "
• Stator diameter - 90 mm / 3.54"
• Hard inclusions (max.) - 3 mm
• Productivity (400 rpm) – 20 l/min / 5.28 gpm
• Productivity (200 rpm) – 10 l/min /2.64 gpm
• Working pressure (max.) - 30 bar / 435 psi

Used for gypsum and cement-sand mixtures, putties, adhesives, and self-leveling compounds.

SPARE PARTS DESCRIPTION:

• Operating pressure: 20 bar / 290 psi
• Length: 210 mm / 7.9 "
• Diameter: 51 mm / 2 "
• Flow rate at 400 rpm: 10 L/min / 2.64 gpm
• Flow rate at 200 rpm: 5 L/min / 1.32 gpm gal/min
• Features: Maximum particle size: 3 mm

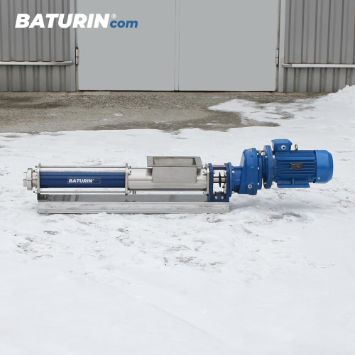

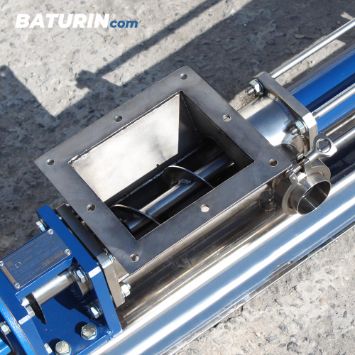

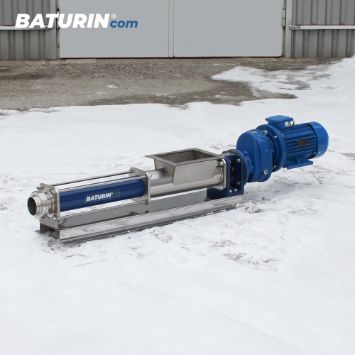

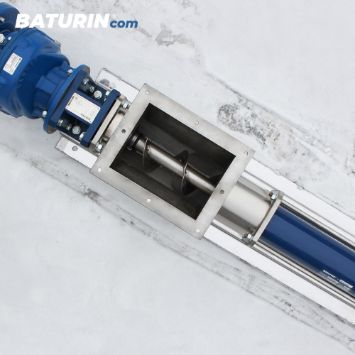

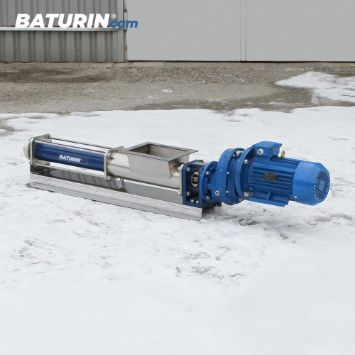

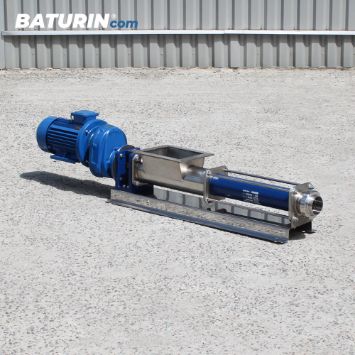

Sanitary progressing cavity pump with an open feed hopper and auger feeder for pumping fruit filling

PC PUMP DESCRIPTION:

• Liquid - Highly Viscous Paste
• Pump Type - Horizontal
• Flow Rate (max) – 3 m3/h / 13,2 gpm
• Differential Pressure - 8 bar / 115 psi
• Rotor Speed - 189 rpm
• Sealing Type - Mechanical BMS-040
• Joint Type - BN-14
• Inlet - Hopper inlet neck
• Outlet - 80 mm / 3” nut
• Pump Housing - AISI 304
• Rotor - AISI 304
• Stator - NBR
• Base Plate - AISI 304
• Drive Type - Gear-Motor
• Power - 2,2 kW / 2.95 hp
• Electrical Supply - 380V / 50 Hz / 3-ph
• Protection Rating – IP55
• Option #1 - Screw Feeder
• Option #2 - Open Hopper

BATURIN ® Coupling Rod for Progressive Cavity Pumps BN045S01/S02/L01, BN038S03/S04

SPARE PARTS DESCRIPTION:

• Coupling Rod - BN-14
• Connection Type - BN-14
• Material – AISI 304

BATURIN ® Plug-in Shaft for Progressive Cavity Pumps BN045S01/S02/L01, BN038S03/S04

SPARE PARTS DESCRIPTION:

• Plug-in Shaft - BN-14
• Connection Type - BN-14
• Material – AISI 304

BATURIN ® Full Set of Joint Repair KIT for Progressive Cavity Pumps BN063S01/S02/L01, BN053S03/S04

SPARE PARTS DESCRIPTION:

• Full Set of Joint Repair KIT - BN-14
• Boot Seal BN-14 - 2 pcs
• Large Clamp BN-14 – 2 pcs
• Small Clamp BN-14 - 2 pcs
• Joint Pin BN-14 - 2 pcs
• Guide Bushing BN-14 - 4 pcs
• Coupling Rod Bushing BN-14 - 2 pcs
• Retaining Sleeve BN-14 - 2 pcs

BATURIN ® BN038S04 High Pressure Rotor & Stator for Progressive Cavity Pumps

SPARE PARTS DESCRIPTION:

• Rotor & Stator Type - BN038S04
• Connection Type - BN-14
• Differential Pressure - 24 bar / 350 psi
• Stator Elastomer – NBR
• Rotor Material - AISI 304

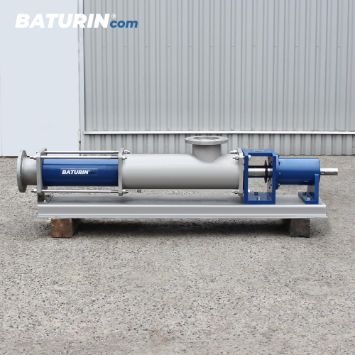

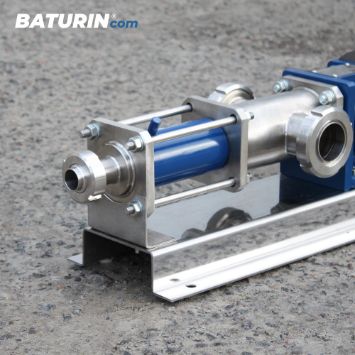

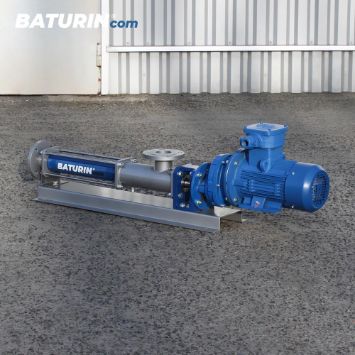

Progressive Cavity Pump BN045S01FYNC is designed for the hygienic transfer of liquid, viscous, and shear-sensitive food products in baby food manufacturing processes.

PC PUMP DESCRIPTION:

• Liquid - Highly Viscous Paste
• Pump Type - Horizontal
• Flow Rate (max) – 2,2 m3/h / 9,7 gpm
• Differential Pressure - 6 bar / 87 psi
• Rotor Speed - 189 rpm
• Sealing Type - Mechanical BMS-040
• Joint Type - BN-14
• Inlet - 100 mm / 4” nut
• Outlet - 100 mm / 4” nut
• Pump Housing - AISI 304
• Rotor - AISI 304
• Stator - NBR
• Base Plate - AISI 304
• Drive Type - Gear-Motor
• Power - 3 kW / 4 hp
• Electrical Supply - 380V / 50 Hz / 3-ph
• Protection Rating – IP55
• Option #1 - Engine Cooling
• Option #2 – CIP-50 mm / 2" nut

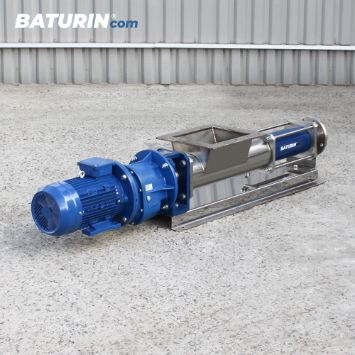

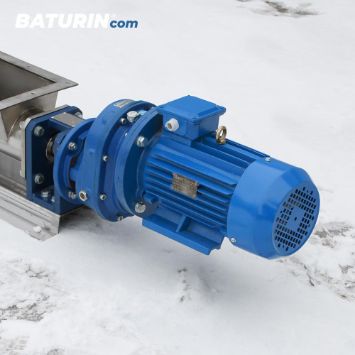

Progressive Cavity Pump with Open Hopper and Screw Feeder for the explosive emulsion

PC PUMP DESCRIPTION:

• Liquid - Explosive Emulsion
• Pump Type - Horizontal
• Flow Rate (max) - 10 m3/h / 44 gpm
• Differential Pressure - 4 bar / 58 psi
• Rotor Speed - 286 rpm
• Sealing Type - Mechanical BMS-058
• Joint Type - BN-20
• Inlet - 125 mm / 4,9”
• Outlet - 125 mm / 4,9”
• Pump Housing - AISI 304
• Rotor - AISI 304
• Stator - NBR
• Base Plate - AISI 304
• Drive Type - Gear-Motor
• Power - 11 kW / 15 hp
• Electrical Supply - 380V / 50 Hz / 3-phase
• Protection Rating - IP65
• Option #1 - Screw Feeder
• Option #2 - Open Hopper

Power section - Rotor and Stator for PC Pump BN063S02

PARTS DESCRIPTION::

• Liquid - Waste Activated Sludge
• Pump type - Vertical
• Submersible Length - 1.2 m / 47"
• Mounting Type - Hook
• Flow Rate (max) - 10 m3/h / 44 gpm
• Differential Pressure - 4 bar / 58 psi
• Rotor Speed - 295 rpm
• Drive Shaft Sealing - Mechanical
• Inlet - Specified by the Design
• Outlet - 65 mm / 2.5"
• Housing –AISI 316L
• Rotor - AISI 316L
• Stator - NBR
• Gear-Motor - 4 kW / 5.5 hp / 400V / 3-phase

Progressive Cavity Pump with Open Hopper and Screw Feeder for the explosive emulsion

PC PUMP DESCRIPTION:

• Liquid - Explosive Emulsion
• Pump Type - Horizontal
• Flow Rate (max) - 10 m3/h / 44 gpm
• Differential Pressure - 4 bar / 58 psi
• Rotor Speed - 286 rpm
• Sealing Type - Mechanical BMS-058
• Joint Type - BN-20
• Inlet - 125 mm / 4,9”
• Outlet - 125 mm / 4,9”
• Pump Housing - AISI 304
• Rotor - AISI 304
• Stator - NBR
• Base Plate - AISI 304
• Drive Type - Gear-Motor
• Power - 11 kW / 15 hp
• Electrical Supply - 380V / 50 Hz / 3-phase
• Protection Rating - IP65
• Option #1 - Screw Feeder
• Option #2 - Open Hopper

Heavy-Duty Progressive Cavity Pump Equipped with an Open Hopper and Screw Feeder for Handling Explosive Emulsions

PC PUMP DESCRIPTION:

• Liquid - Fruit filling
• Pump Type - Horizontal
• Flow Rate (max) - 10 m3/h / 44 gpm
• Differential Pressure - 4 bar / 58 psi
• Rotor Speed - 286 rpm
• Sealing Type - Mechanical BMS-058
• Joint Type - BN-20
• Inlet - 125 mm / 4,9”
• Outlet - 125 mm / 4,9”
• Pump Housing - AISI 304
• Rotor - AISI 304
• Stator - NBR
• Base Plate - AISI 304
• Drive Type - Gear-Motor
• Power - 11 kW / 15 hp
• Electrical Supply - 380V/50Hz/ 3Ph
• Insulation Class - H
• Protection Rating - IP65
• Option #1 - Screw Feeder
• Option #2 - Open Hopper

Power section - Rotor and Stator for PC Pump BN063S02

PARTS DESCRIPTION:

• Liquid - Waste Activated Sludge
• Pump type - Vertical
• Submersible Length - 1.2 m / 47"
• Mounting Type - Hook
• Flow Rate (max) - 10 m3/h / 44 gpm
• Differential Pressure - 4 bar / 58 psi
• Rotor Speed - 295 rpm
• Drive Shaft Sealing - Mechanical
• Inlet - Specified by the Design
• Outlet - 65 mm / 2.5"
• Housing –AISI 316L
• Rotor - AISI 316L
• Stator - NBR
• Gear-Motor - 4 kW / 5.5 hp / 400V / 3-phase

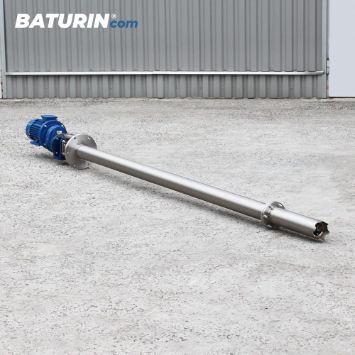

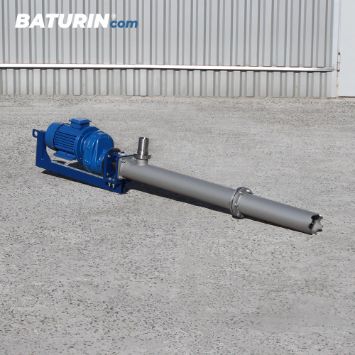

A set of verticals PC Pumps for European Wastewater Treatment Plant

PUMP DESCRIPTION:

• Liquid - Waste Activated Sludge
• Pump type - Vertical
• Submersible Length - 1.2 m / 47"
• Mounting Type - Hook
• Flow Rate (max) - 10 m3/h / 44 gpm
• Differential Pressure - 4 bar / 58 psi
• Rotor Speed - 295 rpm
• Drive Shaft Sealing - Mechanical
• Inlet - Specified by the Design
• Outlet - 65 mm / 2.5"
• Housing –AISI 316L
• Rotor - AISI 316L
• Stator - NBR
• Gear-Motor - 4 kW / 5.5 hp / 400V / 3-phase

A set of verticals PC Pumps for European Wastewater Treatment Plant

PUMP DESCRIPTION:

• Liquid - Waste Activated Sludge
• Pump type - Vertical
• Submersible Length - 1.2 m / 47"
• Mounting Type - Hook
• Flow Rate (max) - 10 m3/h / 44 gpm
• Differential Pressure - 4 bar / 58 psi
• Rotor Speed - 295 rpm
• Drive Shaft Sealing - Mechanical
• Inlet - Specified by the Design
• Outlet - 65 mm / 2.5"
• Housing –AISI 316L
• Rotor - AISI 316L
• Stator - NBR
• Gear-Motor - 4 kW / 5.5 hp / 400V / 3-phase

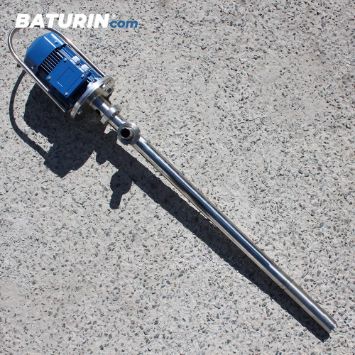

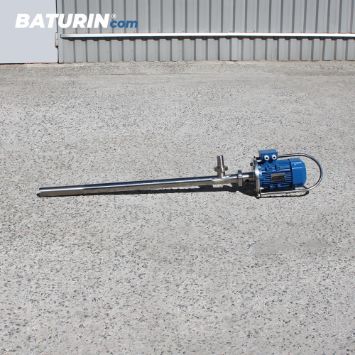

The BATURIN BT020S01FY is specifically engineered for efficient unloading of standard drums containing viscous and high-density liquids.

PUMP DESCRIPTION:

• Liquid -Liquid Fertilizers
• Pump type - Vertical
• Submersible Length - 1000 mm / 40"
• Mounting Type - Handle
• Flow Rate (max) - 3 m3/h / 13 gpm
• Differential Pressure - 4 bar / 58 psi
• Rotor Speed - 1000 rpm
• Drive Shaft Sealing - Mechanical
• Inlet - 50 mm / 2"
• Outlet - 25 mm / 1"
• Housing –AISI 304
• Rotor - AISI 304
• Stator - NBR
• Motor - 1.1 kW/ 1.5 hp / 400V / 3-phase

At one of Asia’s largest wastewater treatment plants, BATURIN® deployed a trial progressive cavity (PC) pump as an alternative to a Netzsch® unit. Following six months of successful operation, the customer elected to replace all existing Netzsch® pumps with BATURIN® pumps. We take pride in being a trusted manufacturer and supplier.

PUMP DESCRIPTION:

• Liquid - Dewatered sludge with up to 30% solids content
• Pump type - Horizontal
• Flow Rate (max) - 15 m3/h / 66 gpm
• Differential Pressure - 36 bar / 522 psi
• Rotor Speed - 78 rpm
• Drive Shaft Sealing - Stuffing Box
• Inlet - Open Hopper
• Outlet - 150 mm /5.9"
• Housing –AISI 304
• Rotor - AISI 304 Cr-plated
• Stator - NBR
• Base Plate - Hard Steel
• Gear-Motor - 75 kW/100 hp/400V/3-phase

DESCRIPTION:

• Type - Horizontal
• Flow Rate (max) - 60 m3/h / 264 gpm
• Differential Pressure - 12 bar / 174 psi
• Rotor Speed -281 rpm
• Drive Shaft Sealing - Single Mechanical
• Inlet - 200 mm / 8"
• Outlet - 200 mm / 8"
• Housing – Hard Steel
• Rotor - AISI 304
• Stator - NBR
• Base Plate - Hard Steel
• Gear-Motor - 45 kW/60 hp/400V/3-phase/1EXD II BT4

DESCRIPTION:

• Type - Horizontal
• Flow Rate (max) - 60 m3/h / 264 gpm
• Differential Pressure - 6 bar / 87 psi
• Rotor Speed - 100-300 rpm
• Drive Shaft Sealing - Single Mechanical
• Inlet - 200 mm / 8"
• Outlet - 200 mm / 8"
• Housing – AISI 304
• Rotor - AISI 304
• Stator - NBR
• Base Plate - AISI 304
• Option #1 - Bearing Housing

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN031S01FYLP:

• Pump type - horizontal
• Wet end material – AISI 304 steel
• Maximum outlet pressure - 6 bar
• Maximum productivity - 0.5 m3/hour
• Rotor speed - 256 rpm
• Drive shaft seal type - single mechanical seal
• Motor rating -0.75kW, 380V, IP55
• Additional options - heating of the working chamber + heating of the working pair

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN038S01FY:

• Pump type - horizontal single screw pump
• The material of the flow part of the pump is steel 12X18H10T
• Pump screw material - steel 12X18H10T
• Pump casing material - IRP-1294 (NBR)
• Pump screw rotation speed - 1000 rpm
• Estimated outlet pressure - 6 bar
• Productivity - 10 m3/h
• Drive shaft seal type - single mechanical
• Entrance - flange DN 65 mm
• Outlet - flange DN 65 mm
• Drive type - electric motor
• Electric motor power - 4 kW
• Additional option - bearing rack

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN031S04FYG:

• Pump type - horizontal single screw pump
• The material of the flow part of the pump is steel 12X18H10T
• Pump screw material - steel 12X18H10T
• Pump casing material - HVA9284 (FKM)
• Pump screw speed range - 100 - 500 rpm
• Estimated outlet pressure - up to 24 bar
• Productivity - up to 1.6 m3/h
• Drive shaft seal type - single mechanical
• Entrance - flange DN 50 mm
• Output - flange DN 50 mm
• Drive type - hydraulic motor

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN045S02FYBS:

• Pump type - horizontal
• Wet end material – AISI 304
• Maximum outlet pressure - 6 bar
• Maximum productivity - 3.5 m3/h
• Rotor speed - 189 rpm
• Drive shaft seal type - single mechanical seal
• Motor specifications - 2.2kW, 380V, IP55
• Additional Features – Hopper Opening and Screw Feeder

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN063L01HY:

• Pump type - horizontal single screw pump
• Wet end material - structural steel 20
• Stator material - NBR
• Rotor material - stainless steel 12X18H10T
• Maximum outlet pressure - 6 bar
• Rated capacity - 30 m3/h
• Speed of rotation of a power shaft - 286 rpm
• Drive shaft seal type - single mechanical seal
• Installed power - 11 kW
• Entrance - flange connection DN 125
• Outlet - flange connection DU 125
• Reducer cylindrical VARMEC
• Frequency regulation of the motor speed

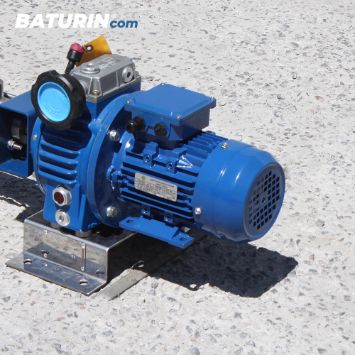

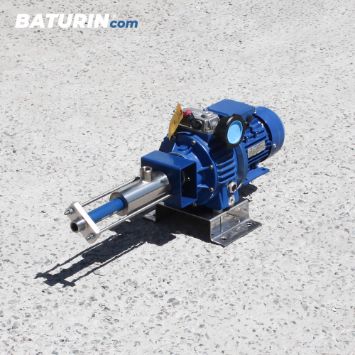

TECHNICAL DETAILS OF DOSING METERING PUMP BN011S02FYV:

• Pump type - horizontal
• Wet end material – AISI 304 steel
• Maximum outlet pressure - 6 bar
• Maximum productivity - 20-150 l/h
• Rotor speed - 167-1000 rpm
• Drive shaft seal type - single mechanical seal
• Motor specifications - 0.55 kW, 380 V, IP55
• Additional features - variator

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN031S01FYN:

• Pump type - horizontal
• Wet end material – AISI 304 steel
• Maximum outlet pressure - 6 bar
• Maximum productivity - 1.4 m3/hour
• Rotor speed - 512 rpm
• Drive shaft seal type - single mechanical seal
• Motor specifications - 1.1kW, 380V, IP55
• Additional characteristics - additional blowing of the electric motor

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN031L01FYBSXT:

• Brand - BATURIN
• Pump type - horizontal
• Material of the flow part - AISI 316
• Stator material - NBR
• Differential pressure - 87 psi / 0.6 MPa
• Capacity - 11 GPM / 2.5 m3/h
• Rotor speed - 358 rpm
• Drive Shaft Sealing - Single Mechanical
• Drive - Gear-Motor 2.2 kW, explosion-proof (1EXD II BT4)
• Additional open hopper & feeder
• Dry run protection system

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BV.400.V1.FY:

• Brand - BATURIN
• Pump type - Vertical
• Material – AISI 304
• Differential Pressure - 58 psi / 0.4 MPa
• Capacity - 44 GPM / 10 m3/h
• Rotor Speed - 295 rpm
• Drive Shaft Sealing - Single Mechanical
• Drive - Gear-Motor 4 kW, 380V, IP55

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN031S02FYBSС:

• Pump type - horizontal single screw pump
• The material of the flow part of the pump is steel 12X18H10T
• Pump screw material - steel 12X18H10T
• Pump casing material - 51-3051 (NBR)
• Pump screw rotation speed - 358 rpm
• Estimated outlet pressure - up to 12 bar
• Estimated productivity - 1 m3/h
• Drive shaft seal type - mechanical face seal
• Entrance - inlet neck for the bunker
• Output - clamp DN 50 mm
• Drive type - motor-reducer

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN031S01FY:

• Pump type - horizontal single screw pump
• Material of the flow part - stainless steel 12X18H10T
• Pump casing material - food grade NBR
• Pump screw rotation speed - 318 rpm
• Estimated outlet pressure - 6 bar
• Estimated productivity - 2 m3/h
• Drive shaft seal type - mechanical face seal
• Entrance - nut DU50 mm
• Exit - nut DU50 mm
• Drive type - motor-reducer
• Engine power - 1.5 kW

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BV038L01FYX:

• Pump type - vertical single screw
• Material of the flow part - stainless steel 12X18H10T
• Rotor material - stainless steel 12X18H10T
• Stator material - elastomer HNBR (THERBAN)
• Maximum outlet pressure - up to 6 bar
• Productivity - 4,7 m3/hour
• Rated rotor speed - 268 rpm
• Drive shaft seal type - single mechanical
• Installed power - 2.2 kW
• Cylindrical reducer - VARMEC RCV 281
• Pump inlet - due to design
• Pump outlet - flange DN 65 mm
• Immersion length - 1650 mm

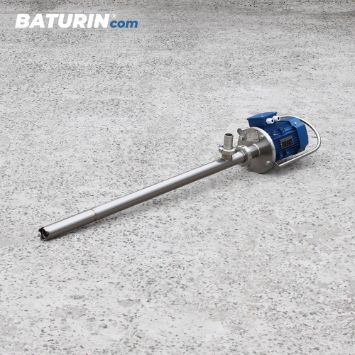

TECHNICAL DETAILS OF BARREL DRUM PUMP BT020S01FY:

Pump type - barrel single screw pump
Material of the flow part - steel 12X18H10T
Maximum outlet pressure - 4 bar
Maximum productivity - 3 m3/h
Drive shaft seal type - single mechanical seal
Electric motor specifications - 1.1 kW, 380 V, 1000 rpm

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN076L01FY:

• Pump type - horizontal
• Wet end material – AISI 304 steel
• Maximum outlet pressure - 6 bar
• Productivity - 25 m3/hour
• Rotor speed - 167 rpm
• Inlet/outlet to the pump - flange DN 150
• Drive shaft seal type - single mechanical seal
• Motor specifications - 15 kW, 380 V, IP55

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN053S02FYG:

• Pump type - horizontal single screw pump
• Stator material - oil and petrol resistant rubber
• Rotor material - stainless steel 12X18H10T
• Material of the flow part - stainless steel 12X18H10T
• Maximum outlet pressure - 12 bar
• Working pressure at the outlet - 6 bar
• Productivity at working pressure - 2,0-15,0 m3/h

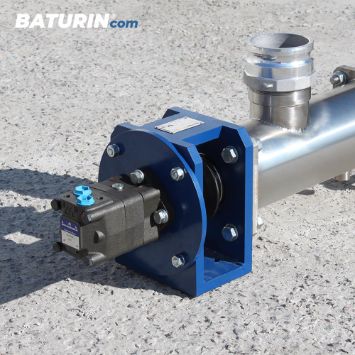

• Drive type - hydraulic drive
• Drive shaft speed - 100-450 rpm
• Drive shaft seal - mechanical
• Inlet - quick coupling Camlock 4” Type A
• Outlet Camlock 4” Quick Coupling Type A

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN063L01FY:

• Pump type - horizontal
• Wet end material – AISI 304 steel
• Maximum outlet pressure - 4 bar
• Maximum productivity - 30 m3/hour
• Rotor speed - 286 rpm
• Drive shaft seal type - single mechanical seal
• Motor specifications - 11kW, 380V, IP55

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN045S02FYBS:

• Pump type - horizontal
• Wet end material – AISI 304
• Maximum outlet pressure - 6 bar
• Maximum productivity - 3.5 m3/h
• Rotor speed - 189 rpm
• Drive shaft seal type - single mechanical seal
• Motor specifications - 2.2kW, 380V, IP55
• Additional Features – Hopper Opening and Screw Feeder

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN031S01FY:

• Pump type - horizontal
• Wet end material – AISI 304 steel
• Maximum outlet pressure - 4 bar
• Maximum productivity - 1 m3/hour
• Rotor speed - 341 rpm
• Drive shaft seal type - single mechanical seal
• Motor specifications - 0.75 kW, 380 V, IP55

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN038L01FY:

• Pump type - horizontal
• Wet end material – AISI 304 steel
• Maximum outlet pressure - 6 bar
• Maximum productivity - 10 m3/hour
• Rotor speed - 495 rpm
• Drive shaft seal type - single mechanical seal
• Motor specifications - 4 kW, 380 V, IP55

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN021S02FYLP:

• Pump type - horizontal
• Wet end material – AISI 304
• Maximum outlet pressure - 10 bar
• Maximum productivity - 0.33 m3/h
• Rotor speed - 358 rpm
• Drive shaft seal type - single mechanical seal
• Motor specifications - 1.1kW, 380V, IP55
• Additional features - heating of the working chamber, heating of the working bet, two entrances to the working chamber

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN038S01FYLP:

• Pump type - horizontal
• Wet end material – AISI 304
• Maximum outlet pressure - 6 bar
• Maximum productivity - 3 m3/hour
• Rotor speed - 495 rpm
• Drive shaft seal type - single mechanical seal
• Motor specifications - 2.2kW, 380V, IP55
• Additional characteristics - heating of the working chamber, heating of the working par

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN063S01HYX:

• Pump type - horizontal single screw pump
• Material of the flowing part of the pump - steel 20
• Pump screw material - steel 40X13
• Pump casing material - IRP-1294 (oil and petrol resistant)
• Pump screw rotation speed - 344 rpm
• Estimated outlet pressure - 5 bar
• Estimated productivity - 14 m3/h
• Drive shaft seal type - single mechanical
• Entrance - flange DN 125 mm
• Output - flange DN 125 mm
• Drive type - motor-reducer
• Electric motor - 5.5 kW, explosion-proof

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN031S01FY:

• Pump type - horizontal
• Wet end material – AISI 304 steel
• Maximum outlet pressure - up to 6 bar
• Maximum productivity - 4 m3/hour
• Rotor speed - 341 rpm
• Drive shaft seal type - single mechanical seal
• Motor specifications - 1.5 kW, 380 V, IP55
• Additional features - two entrances to the working chamber

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN038L01HYX:

• Pump type - horizontal single screw pump
• Material of the flowing part of the pump - steel 20
• Pump screw material - steel 40X13
• Pump casing material - IRP-1294 (oil and petrol resistant)
• Pump screw rotation speed - 290 rpm
• Estimated outlet pressure - 6 bar
• Estimated productivity - 5 m3/h
• Drive shaft seal type - single mechanical
• Entrance - flange DN 65 mm
• Outlet - flange DN 65 mm
• Drive type - motor-reducer
• Electric motor - 3 kW, explosion-proof

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN038S02FYLP:

• Pump type - horizontal
• Wet end material – AISI 304
• Maximum outlet pressure - 10 bar
• Maximum productivity - 1 m3/hour
• Rotor speed - 234 rpm
• Drive shaft seal type - single mechanical seal
• Motor specifications - 3kW, 380V, IP55

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN053S02FYBS:

• Pump type - horizontal
• Wet end material – AISI 304
• Maximum outlet pressure - 9 bar
• Maximum productivity - 8 m3/hour
• Rotor speed - 307 rpm
• Drive shaft seal type - single mechanical seal
• Motor specifications - 5.5 kW, 380 V, IP55
• Additional Features – Hopper Opening and Screw Feeder

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN045L01HZX:

• Pump type - horizontal
• Wet end material - carbon steel 20 with protective paint coating
• Rotor material - tool steel 40X13 after hardening
• Stator material - oil and petrol resistant elastomer IRP-1294
• Maximum outlet pressure - up to 6 bar
• Productivity range - 5-20 m3/hour
• Rated productivity - 15 m3/h
• Rated rotor speed - 414 rpm
• Pump inlet and outlet - flange DN 80 mm
• Type of drive shaft seal - gland packing
• Installed power - 5.5 kW
• Explosion proof motor 1ExdIIBT4

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN031L01FY:

• Pump type - horizontal
• Wet end material – AISI 304 steel
• Maximum outlet pressure - 4 bar
• Maximum productivity - 4 m3/hour
• Rotor speed - 234 rpm
• Drive shaft seal type - single mechanical seal
• Motor specifications - 2.2 kW, 380 V, IP55

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN045S02HY:

• Pump type - horizontal single screw
• Wet end material - steel 20
• Maximum outlet pressure - 12 bar
• Maximum productivity - 6.8 m3/hour
• Rotor speed - 414 rpm
• Drive shaft seal type - single mechanical seal
• Motor specifications - 3kW, 380V, IP55

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN063L01FY:

• Pump type - horizontal single screw pump
• The material of the flow part of the pump is steel 12X18H10T
• Pump screw material - steel 12X18H10T
• Pump casing material - food grade elastomer
• Estimated outlet pressure - 6 bar
• Productivity - 30 m3/h
• Drive shaft seal type - mechanical face seal
• Entrance - flange DU 125
• Outlet - flange DN 125
• Drive type - motor-reducer
• Electric motor power - 11 kW

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN105S01FY:

• Pump type - horizontal
• Wet end material – AISI 304 steel
• Maximum outlet pressure - 6 bar
• Maximum productivity - 57 m3/hour
• Drive shaft seal type - mechanical

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN053S01FYZS:

• Pump type - horizontal single screw pump
• Material of the flow part - stainless steel 12X18H10T
• Screw material (rotor) - stainless steel 12X18H10T
• Clip material (stator) - IRP-1294
• Outlet pressure - 6 bar
• Productivity - 10 m3/h
• Entrance - neck under the bunker
• Outlet - flange DU 100
• Reducer cylindrical VARMEC
• Electric motor AIR - 5.5 kW

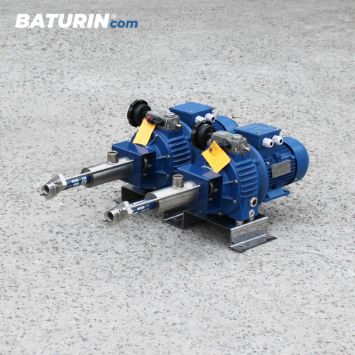

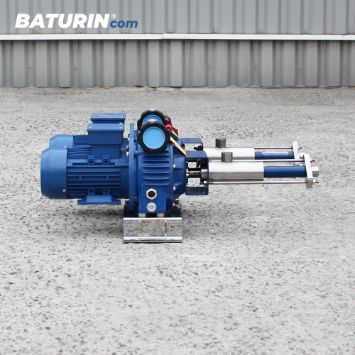

TECHNICAL DETAILS OF DOSING METERING PUMP BM.100.W2.FYXV:

• Brand - BATURIN
• Pump Type - Horizontal
• Material - AISI 316
• Stator - NBR
• Rotor Speed - 167 - 1000 rpm
• Differential Pressure - 87 psi / 0.6 MPa
• Capacity - 0.1 - 0.7 GPM / 20-150 l/h
• Drive Shaft Sealing - Single Mechanical
• Inlet - 1/2"
• Outlet - 1/2"
• Drive - Motor-Variator0.55 kW

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN045S02FYLP:

• Pump type - horizontal
• Wet end material – AISI 304 steel
• Maximum outlet pressure - 8 bar
• Maximum productivity - 10 m3/hour
• Rotor speed - 404 rpm
• Drive shaft seal type - single mechanical seal
• Motor specifications - 7.5 kW, 380 V, IP55
• Additional characteristics - heating of the working pair and the working chamber

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN038L01FY:

• Pump type - horizontal
• Wet end material – AISI 304 steel
• Maximum outlet pressure - 4 bar
• Maximum productivity - 4 m3/hour
• Rotor speed - 234 rpm
• Drive shaft seal type - single mechanical seal
• Motor specifications - 2.2 kW, 380 V, IP55

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN038L01FYBS:

• Pump type - horizontal single screw pump
• The material of the flow part of the pump is steel 12X18H10T
• Pump screw material - steel 12X18H10T
• Pump casing material - 51-3051 (NBR)
• Pump screw rotation speed - 365 rpm
• Estimated outlet pressure - 6 bar
• Estimated productivity - 7 m3/h
• Drive shaft seal type - mechanical (face) seal
• Entrance - Inlet neck
• Outlet - flange DN 65 mm
• Drive type - motor-reducer

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN038L01FZS:

• Pump type - horizontal single screw pump
• The material of the flow part of the pump is steel 12X18H10T
• Pump screw material - steel 12X18H10T
• Pump casing material - 7-IRP-1348 (IIR)
• Pump screw rotation speed - 251 rpm
• Estimated outlet pressure - 6 bar
• Estimated productivity - 5 m3/h
• Drive shaft seal type - serviced stuffing box
• Entrance - flange DN 100 mm
• Output - flange DN 50 mm
• Drive type - motor-reducer

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN031S01FY:

• Type - horizontal single screw
• Productivity - three cubic meters per hour
• Outlet operating pressure - six bar
• Flow part material - 12X18H10T
• Pump casing material - food grade elastomer
• Drive shaft seal - mechanical
• Entrance - nut DN 50 mm
• Exit - nut DN 50 mm
• Drive type - motor-reducer
• Electric motor power - 2.2 kilowatts

TECHNICAL DETAILS OF PROGRESSIVE CAVITY PUMP BN076L01FY:

• Pump type - horizontal
• Wet end material – AISI 304 steel
• Maximum outlet pressure - 6 bar
• Productivity - 25 m3/hour
• Rotor speed - 167 rpm
• Inlet/outlet to the pump - flange DN 150
• Drive shaft seal type - single mechanical seal
• Motor specifications - 15 kW, 380 V, IP55
