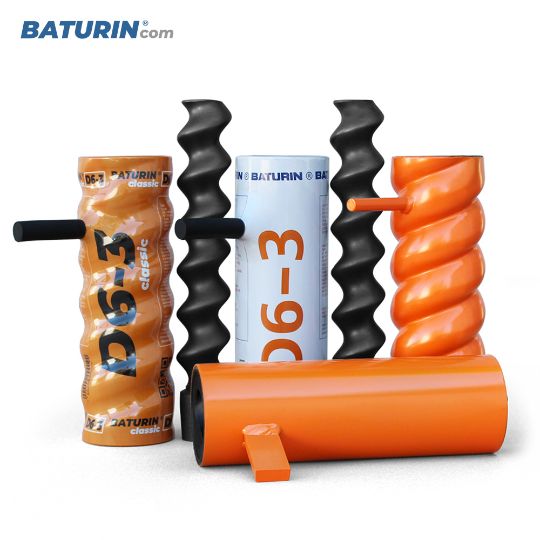

D6-3 SERIES
- Capacity (at 400 rpm) 20 lit/min
- Capacity (at 200 rpm) 10 lit/min
- Working pressure (max) 30 bar
- Grain Size (max) up to 3 mm
BATURIN ® Progressive Cavity Rotors, Stators, Joints & Spare Parts
BATURIN ® is one of the largest manufacturers of Progressive Cavity Pumps and Spare Parts with more than 30 years of proven industry experience

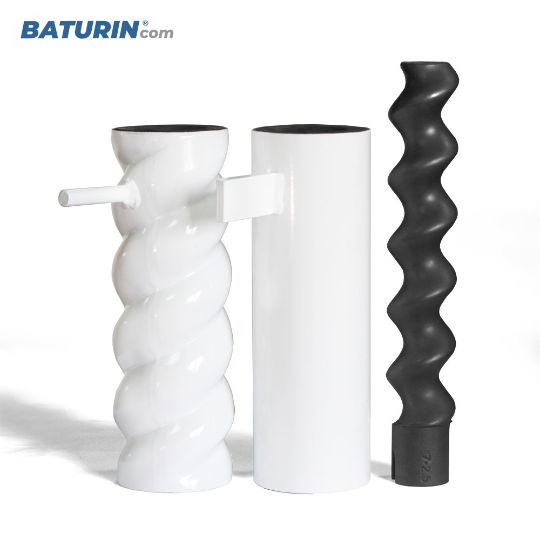

D7-2,5 SERIES
- Capacity (at 400 rpm) 25 lit/min
- Capacity (at 200 rpm) 13 lit/min
- Working pressure (max) 25 bar
- Grain Size (max) up to 3 mm

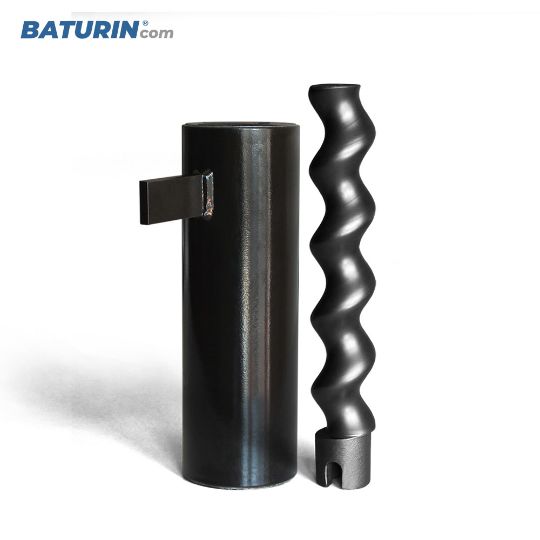

D8-2 SERIES
Rotors & Stators
- Capacity (at 400 rpm) 32 lit/min
- Capacity (at 200 rpm) 16 lit/min
- Working pressure (max) 25 bar
- Grain Size (max) up to 3 mm

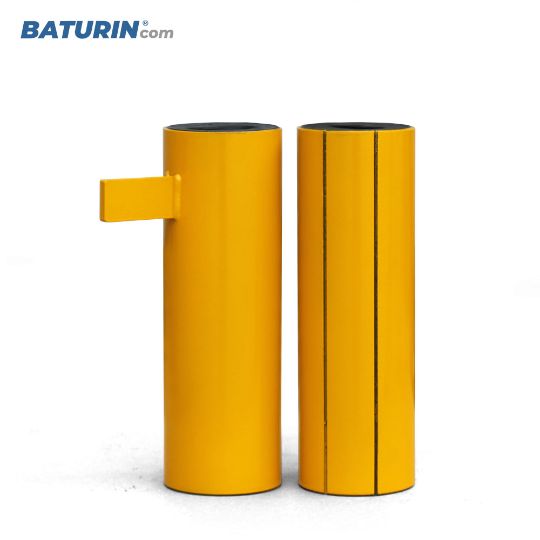

D8-1,5 SERIES
Rotors & Stators
- Capacity (at 400 rpm) 36 lit/min
- Capacity (at 200 rpm) 18 lit/min
- Working pressure (max) 15 bar
- Grain Size (max) up to 3 mm

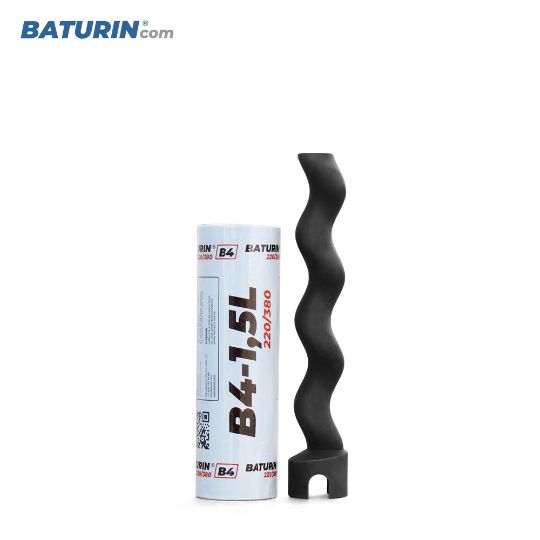

B4-1,5 SERIES
Rotors & Stators
- Capacity (at 400 rpm) 10 lit/min
- Capacity (at 200 rpm) 5 lit/min
- Working pressure (max) 15 bar
- Grain Size (max) up to 2 mm
B4-2 SERIES
Rotors & Stators
- Capacity (at 400 rpm) 10 lit/min
- Capacity (at 200 rpm) 5 lit/min
- Working pressure (max) 20 bar
- Grain Size (max) up to 2 mm

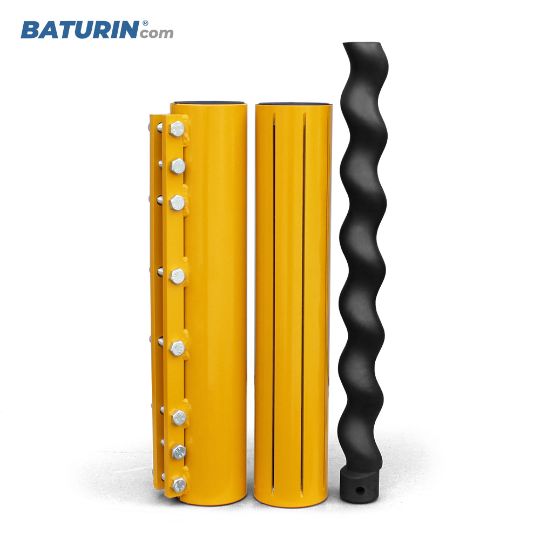

2L6 SERIES
Rotors & Stators
- Capacity (at 400 rpm) 60 lit/min
- Capacity (at 200 rpm) 30 lit/min
- Working pressure (max) 20 bar
- Grain Size (max) up to 6 mm
2L6+++ SERIES
Rotors & Stators
- Capacity (at 400 rpm) 110 lit/min
- Capacity (at 200 rpm) 55 lit/min
- Working pressure (max) 20 bar
- Grain Size (max) up to 6 mm

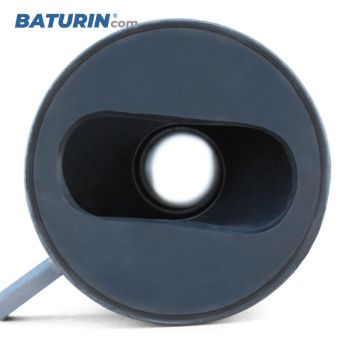

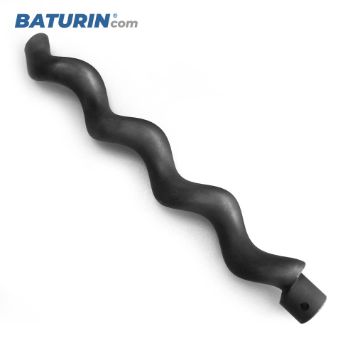

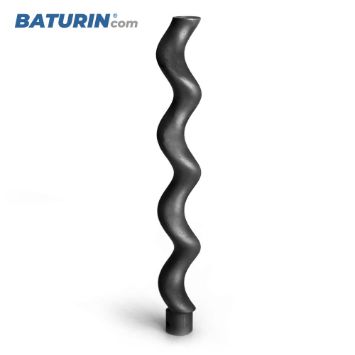

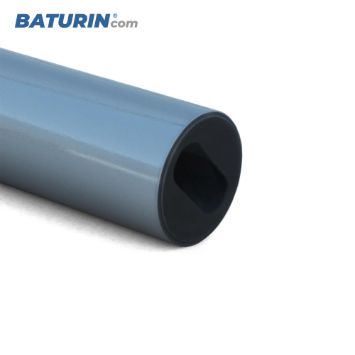

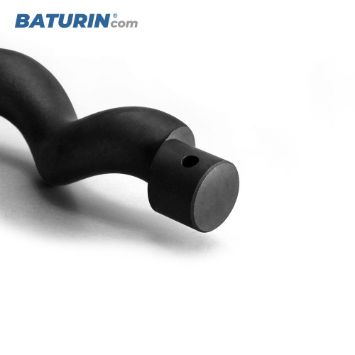

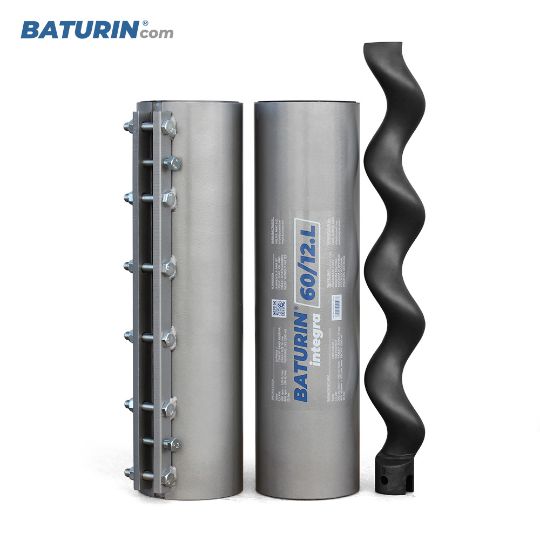

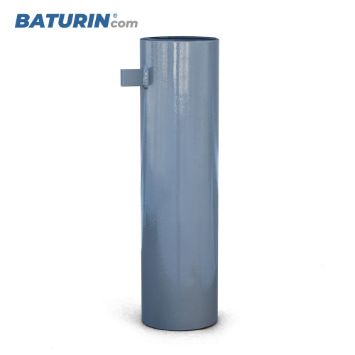

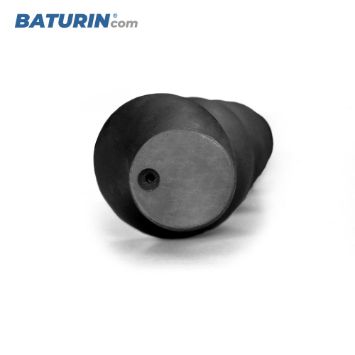

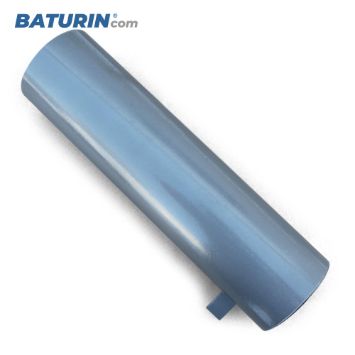

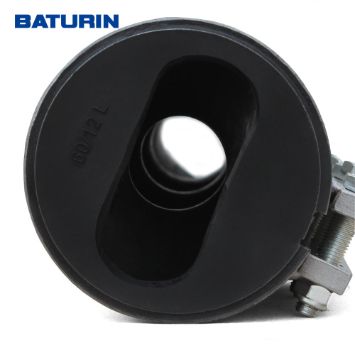

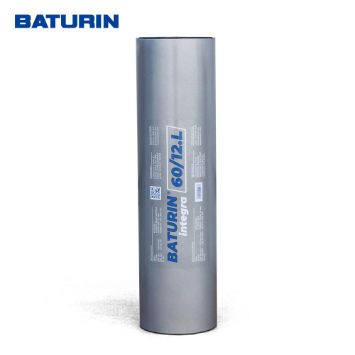

60/12L SERIES
- Capacity (at 400 rpm) 270 lit/min
- Capacity (at 200 rpm) 130 lit/min
- Working pressure (max) 20 bar
- Grain Size (max) up to 10 mm

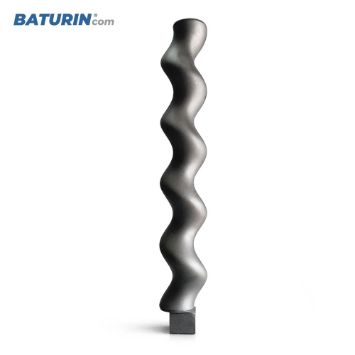

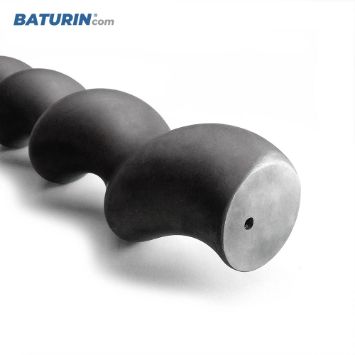

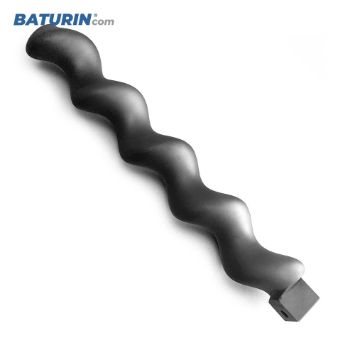

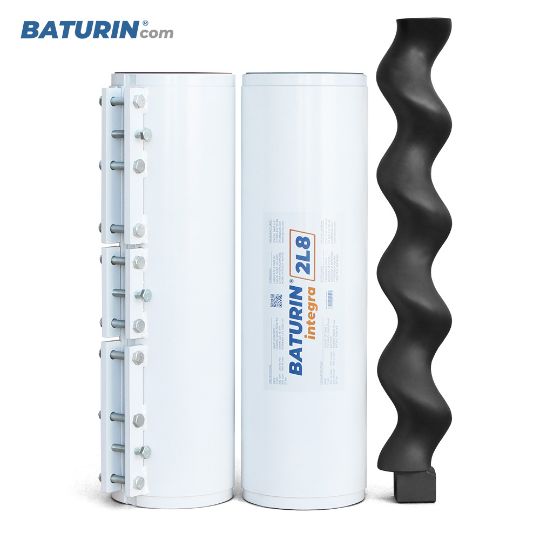

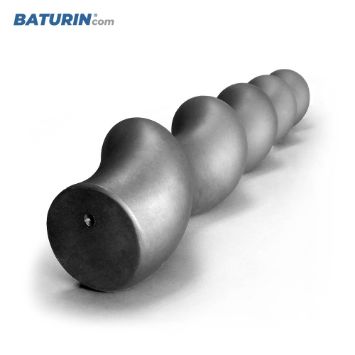

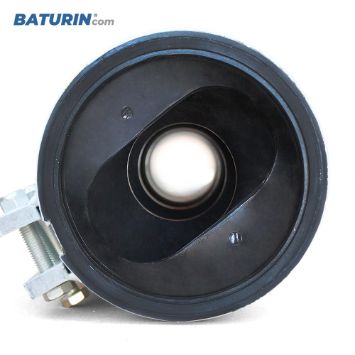

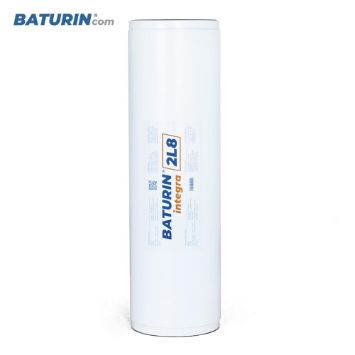

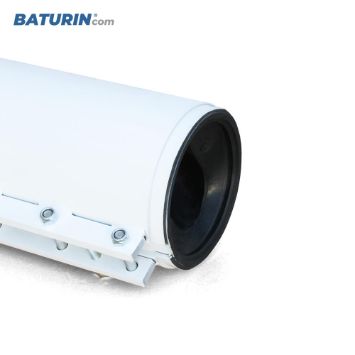

2L8 SERIES
Rotors & Stators
- Capacity (at 400 rpm) 450 lit/min
- Capacity (at 200 rpm) 220 lit/min
- Working pressure (max) 20 bar
- Grain Size (max) up to 10 mm

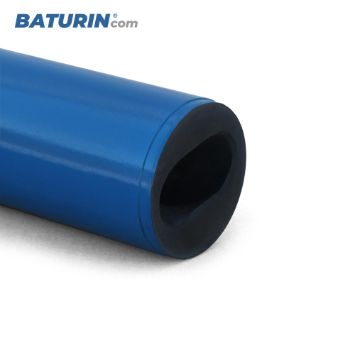

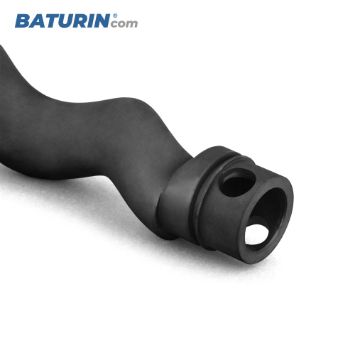

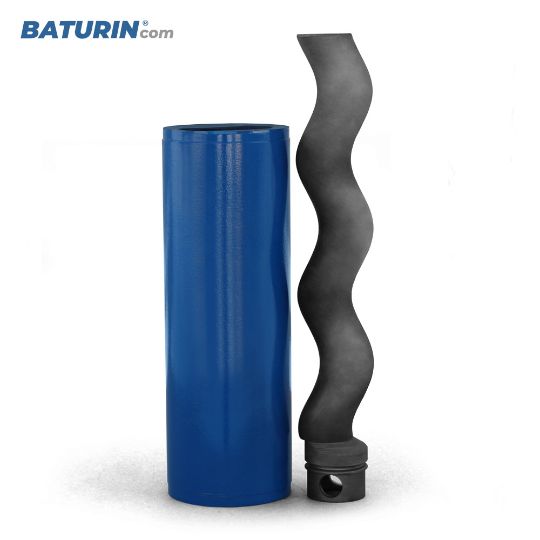

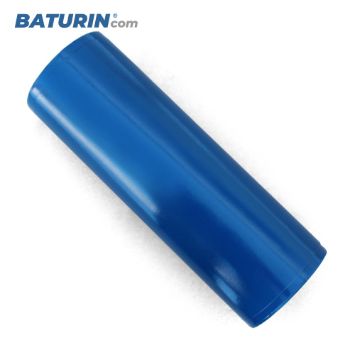

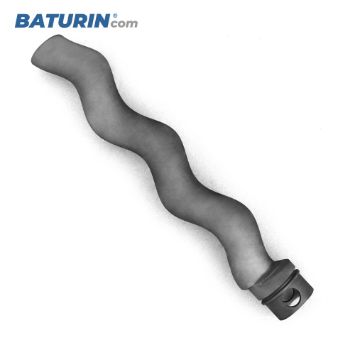

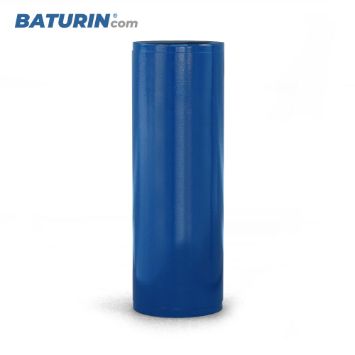

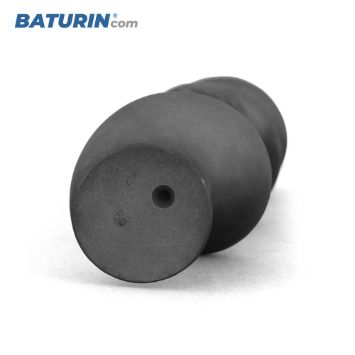

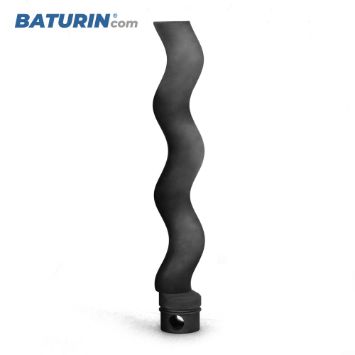

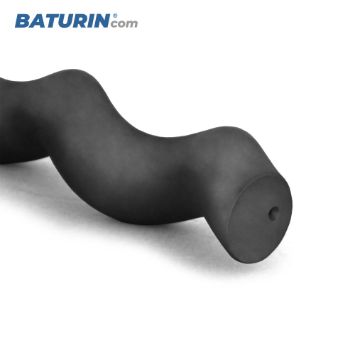

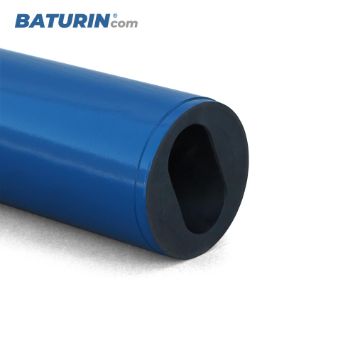

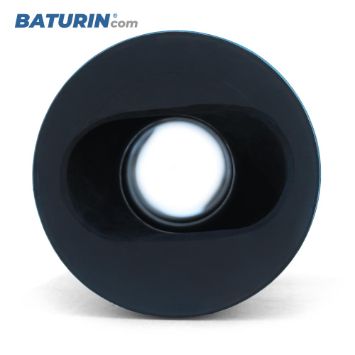

EH-800 SERIES Rotors & Stators
- Capacity (at 400 rpm) 300 lit/min
- Capacity (at 200 rpm) 150 lit/min
- Working pressure (max) 12 bar
- Grain Size (max) up to 10 mm
BATURIN ® ORIGINAL
Rotors & Stators
- Aftermarket Rotors & Stators
- Aftermarket Spare Parts
- Aftermarket PC Pumps
- Prompt DeliveryWorldwide

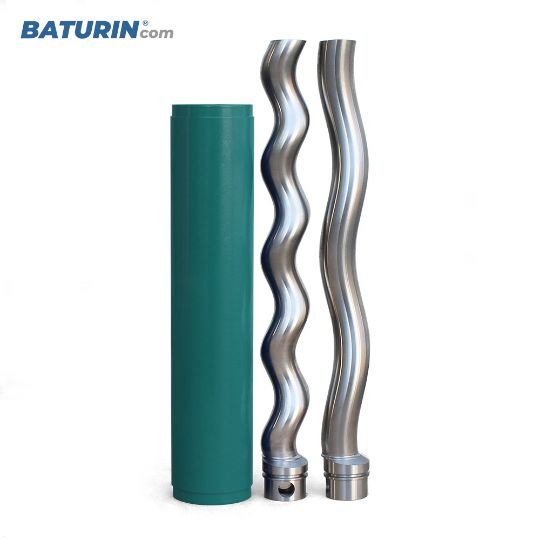

Netzsch ® Equivalent
Rotors & Stators
- Aftermarket Rotors & Stators
- Aftermarket Spare Parts
- Aftermarket PC Pumps
- Prompt DeliveryWorldwide

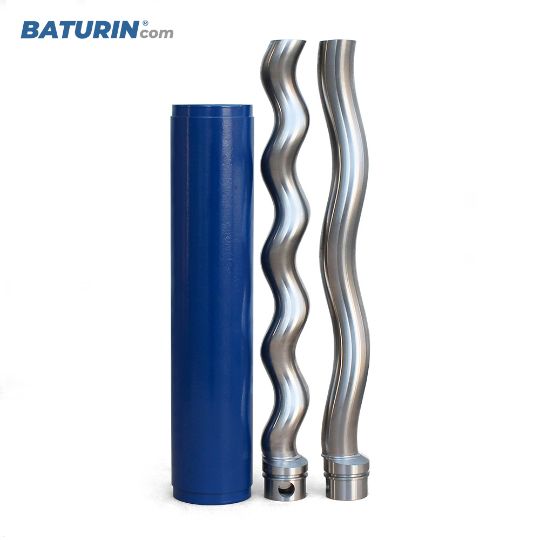

SEEPEX ® Equivalent
Rotors & Stators
- Aftermarket Rotors & Stators
- Aftermarket Spare Parts
- Aftermarket PC Pumps
- Prompt DeliveryWorldwide

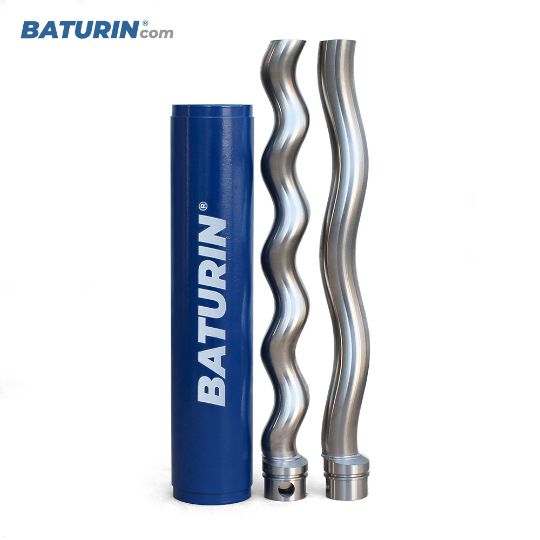

Types of BATURIN ® Rotors, Stators & Spare Parts
BATURIN ® is one of the largest manufacturers of Progressive Cavity Pumps and Spare Parts with more than 30 years of proven industry experience

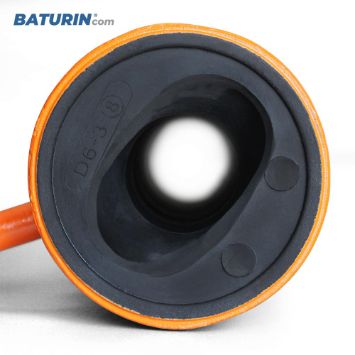

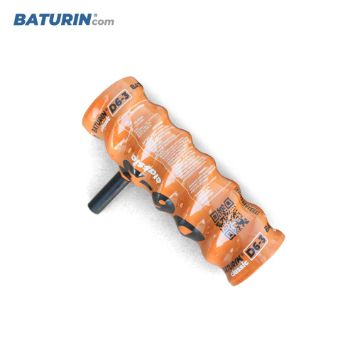

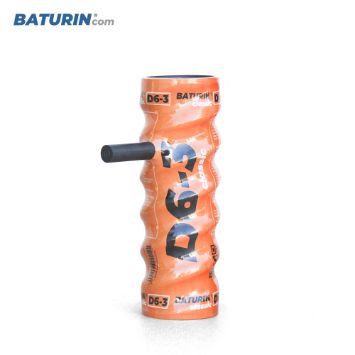

D6-3 SERIES

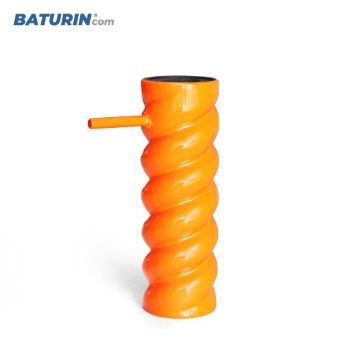

STATOR D6-3
TWiSTED SKiN
- Part no. - 001.630.02
- Product Name - D6-3 Stator Classic Twisted
- Weight - 2,43 kg
- Stator Length - 273 mm
- Stator Diameter - 90 mm
- Grain Size (max) - 3 mm
- Capacity (at 400 rpm) - 20 lit/min
- Capacity (at 200 rpm) - 10 lit/min
- Working pressure (max) - 30 bar

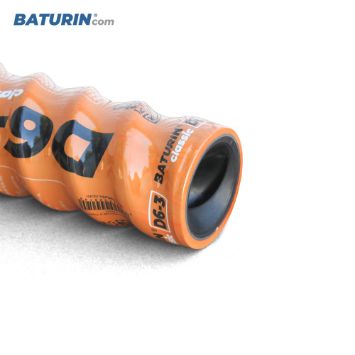

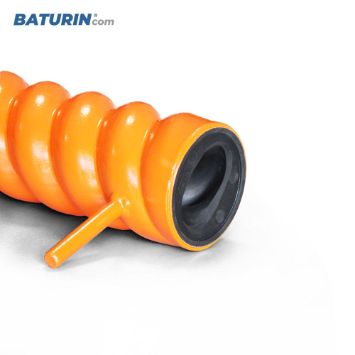

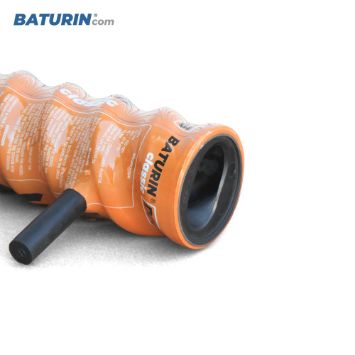

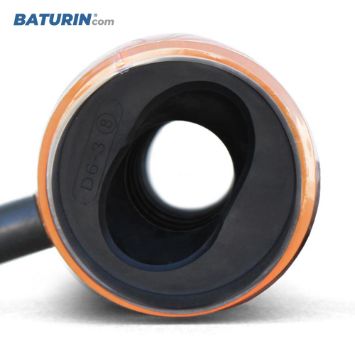

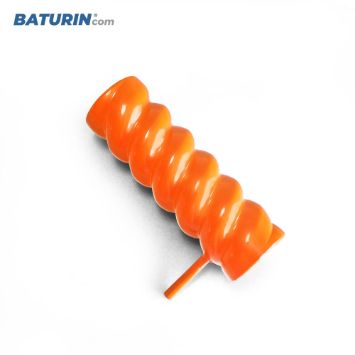

Stator BATURIN ® D6-3 TWiSTED
Stator BATURIN ® D6-3 TWiSTED
Stator BATURIN ® D6-3 TWiSTED
Stator BATURIN ® D6-3 TWiSTED
Stator BATURIN ® D6-3 TWiSTED

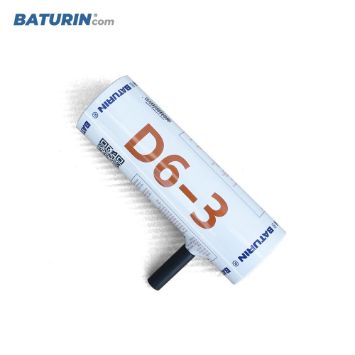

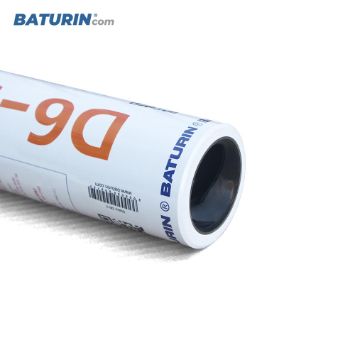

D6-3 SERIES
STATOR D6-3
SOFT STANDARD
- Part no. - 001.630.01
- Product Name - D6-3 Stator Soft Standard
- Weight - 2,60 kg
- Stator Length - 273 mm
- Stator Diameter - 90 mm
- Grain Size (max) - 3 mm
- Capacity (at 400 rpm) - 20 lit/min
- Capacity (at 200 rpm) - 10 lit/min
- Working pressure (max) - 30 bar

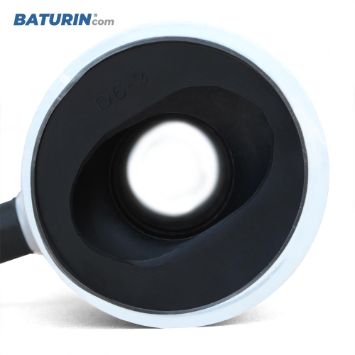

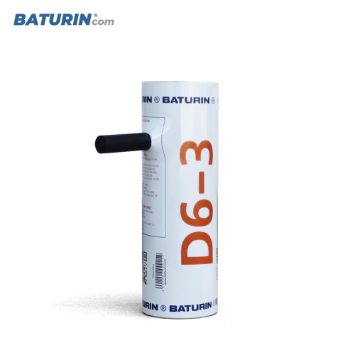

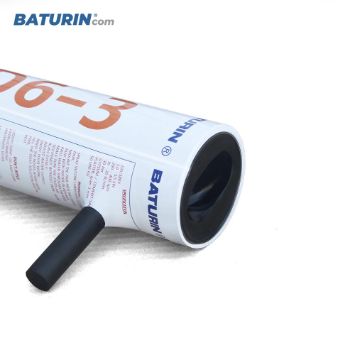

STATOR BATURIN ® D6-3 SOFT STANDARD
STATOR BATURIN ® D6-3 SOFT STANDARD
STATOR BATURIN ® D6-3 SOFT STANDARD
STATOR BATURIN ® D6-3 SOFT STANDARD
STATOR BATURIN ® D6-3 SOFT STANDARD
D6-3 SERIES
STATOR D6-3
TWiSTED
- Part no. - 001.630.02
- Product Name - D6-3 Stator Classic Twisted
- Weight - 2,43 kg
- Stator Length - 273 mm
- Stator Diameter - 90 mm
- Grain Size (max) - 3 mm
- Capacity (at 400 rpm) - 20 lit/min
- Capacity (at 200 rpm) - 10 lit/min
- Working pressure (max) - 30 bar

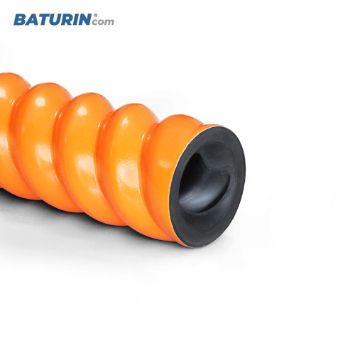

Stator BATURIN ® D6-3 TWiSTED
Stator BATURIN ® D6-3 TWiSTED
Stator BATURIN ® D6-3 TWiSTED
Stator BATURIN ® D6-3 TWiSTED
Stator BATURIN ® D6-3 TWiSTED

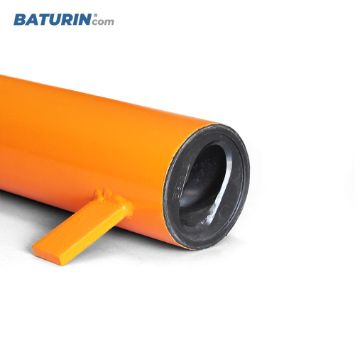

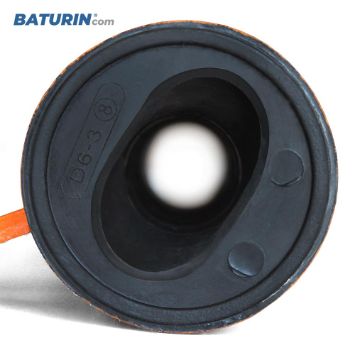

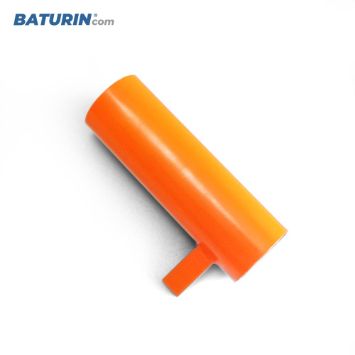

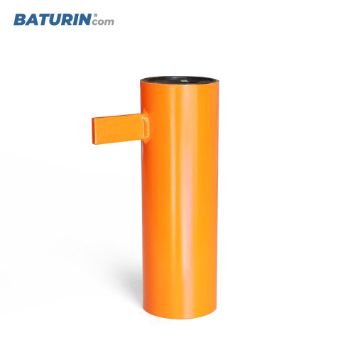

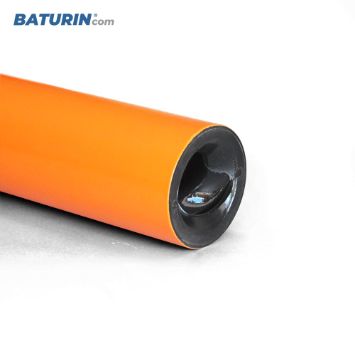

D6-3 SERIES
STATOR D6-3
MAINTENANCE FREE
- Part no. - 001.630.01
- Product Name - D6-3 Stator Maintenance Free
- Weight - 2,60 kg
- Stator Length - 273 mm
- Stator Diameter - 90 mm
- Grain Size (max) - 3 mm
- Capacity (at 400 rpm) - 20 lit/min
- Capacity (at 200 rpm) - 10 lit/min
- Working pressure (max) - 30 bar
STATOR BATURIN ® D6-3 MAINTENANCE FREE
STATOR BATURIN ® D6-3 MAINTENANCE FREE
STATOR BATURIN ® D6-3 MAINTENANCE FREE
STATOR BATURIN ® D6-3 MAINTENANCE FREE
STATOR BATURIN ® D6-3 MAINTENANCE FREE

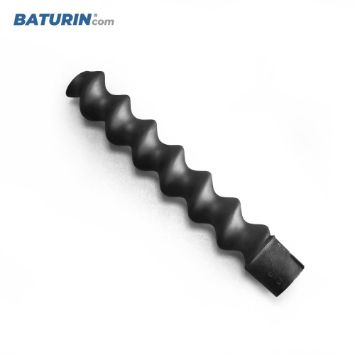

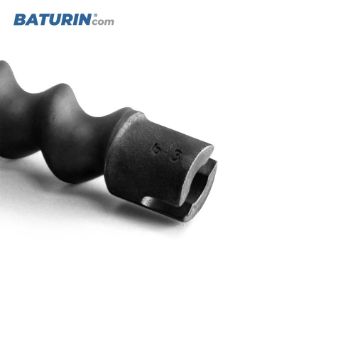

D6-3 SERIES

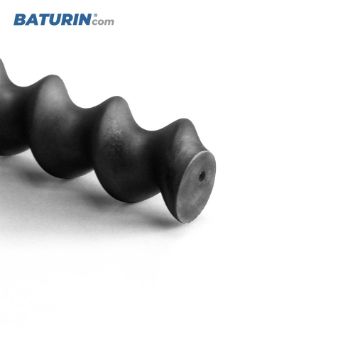

ROTOR D6-3
CASTED
- Part no. - 002.630.01
- Product Name - D6-3 Rotor High Alloy
- Weight - 3,0 kg
- Rotor Length - 328 mm
- Rotor Diameter - 40 mm
- Grain Size (max) - 3 mm
- Capacity (at 400 rpm) - 20 lit/min
- Capacity (at 200 rpm) - 10 lit/min
- Working pressure (max) - 30 bar

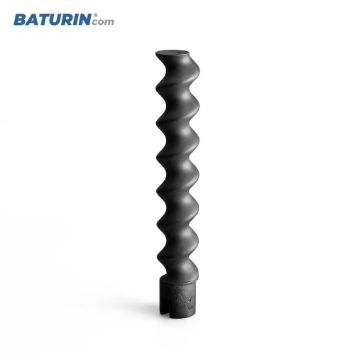

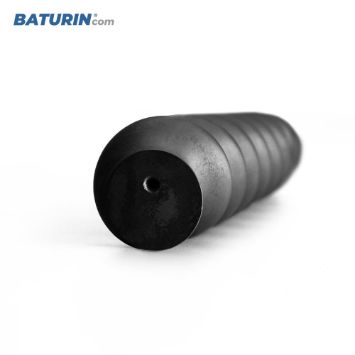

STATOR BATURIN ® D6-3 ROTOR HIGH ALLOY
STATOR BATURIN ® D6-3 ROTOR HIGH ALLOY
STATOR BATURIN ® D6-3 ROTOR HIGH ALLOY
STATOR BATURIN ® D6-3 ROTOR HIGH ALLOY
STATOR BATURIN ® D6-3 ROTOR HIGH ALLOY

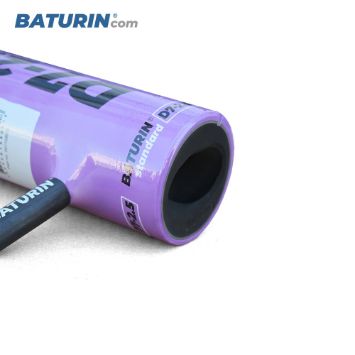

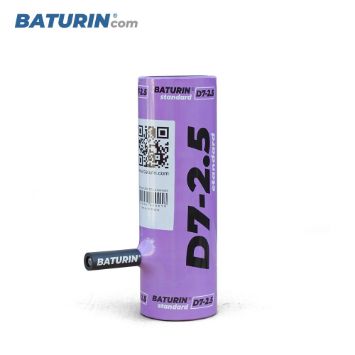

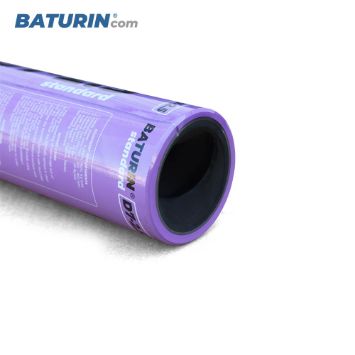

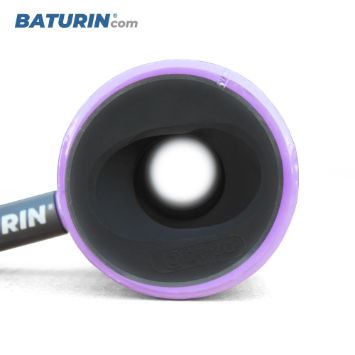

D7-2.5 SERIES
STATOR D7-2.5
SKIN
- Part no. - 001.630.01
- Product Name - D6-3 Stator Soft Standard
- Weight - 2,60 kg
- Stator Length - 273 mm
- Stator Diameter - 90 mm
- Grain Size (max) - 3 mm
- Capacity (at 400 rpm) - 25 lit/min
- Capacity (at 200 rpm) - 13 lit/min
- Working pressure (max) - 25 bar
STATOR BATURIN ® D6-3 SOFT STANDARD
STATOR BATURIN ® D6-3 SOFT STANDARD
STATOR BATURIN ® D6-3 SOFT STANDARD
STATOR BATURIN ® D6-3 SOFT STANDARD
STATOR BATURIN ® D6-3 SOFT STANDARD

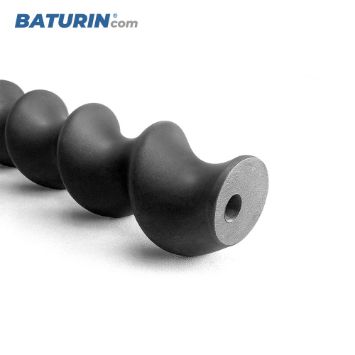

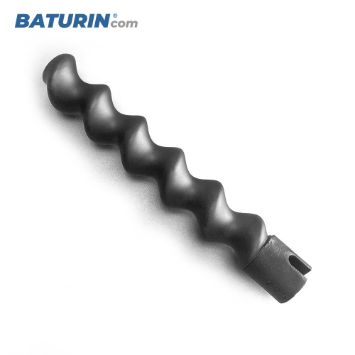

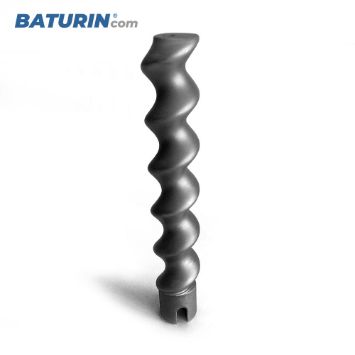

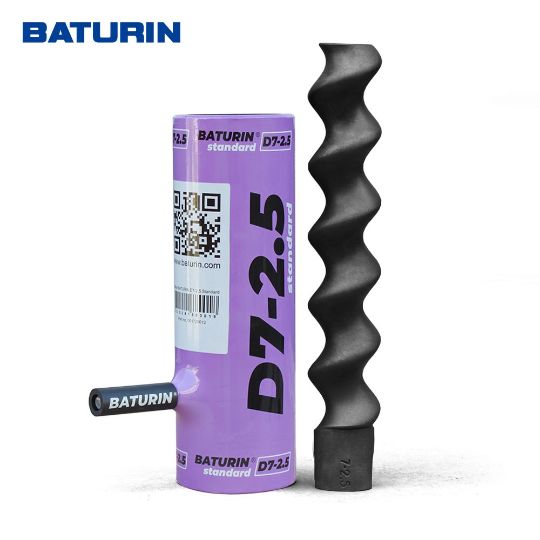

D7-2.5 SERIES

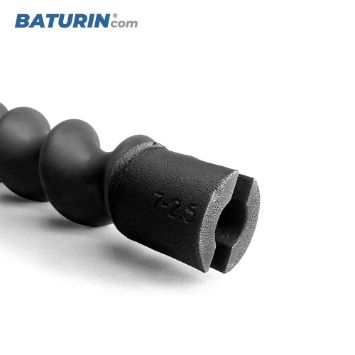

ROTOR D7-2.5
CASTED
- Part no. - 001.725.02
- Product Name - D7-2,5 Rotor High Alloy
- Weight - 3,0 kg
- Rotor Length - 328 mm
- Rotor Diameter - 40 mm
- Grain Size (max) - 3 mm
- Capacity (at 400 rpm) - 25 lit/min
- Capacity (at 200 rpm) - 13 lit/min
- Working pressure (max) - 25 bar

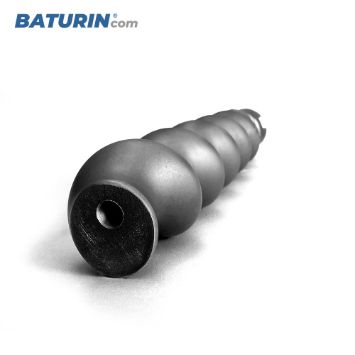

STATOR BATURIN ® D7-2.5 ROTOR HIGH ALLOY
STATOR BATURIN ® D7-2.5 ROTOR HIGH ALLOY
STATOR BATURIN ® D7-2.5 ROTOR HIGH ALLOY
STATOR BATURIN ® D7-2.5 ROTOR HIGH ALLOY
STATOR BATURIN ® D7-2.5 ROTOR HIGH ALLOY

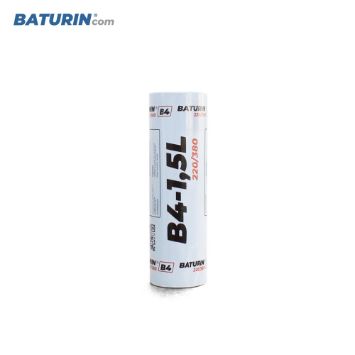

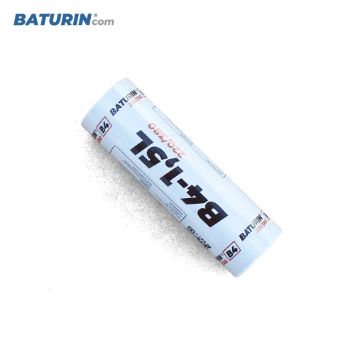

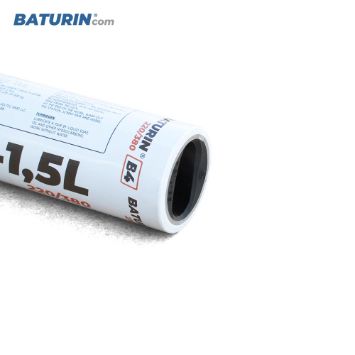

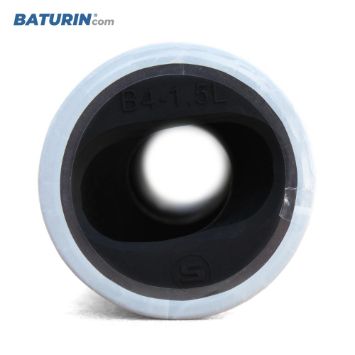

B4-1.5 SERIES
STATOR B4-1.5
SKIN
- Part no. - 001.415.01
- Product Name - B4-1,5 L Stator Maintenance Free
- Weight - 0,71 kg
- Stator Length - 160 mm
- Stator Diameter - 51 mm
- Grain Size (max) - 2 mm
- Capacity (at 400 rpm) - 10 lit/min
- Capacity (at 200 rpm) - 5 lit/min
- Working pressure (max) - 15 bar

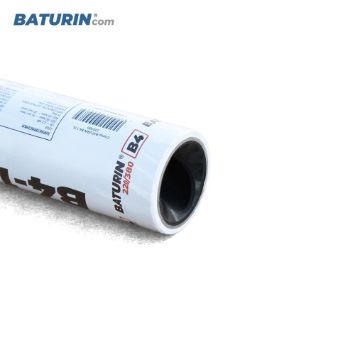

STATOR BATURIN ® B4-1.5 MAINTENANCE FREE
STATOR BATURIN ® B4-1.5 MAINTENANCE FREE
STATOR BATURIN ® B4-1.5 MAINTENANCE FREE
STATOR BATURIN ® B4-1.5 MAINTENANCE FREE
STATOR BATURIN ® B4-1.5 MAINTENANCE FREE

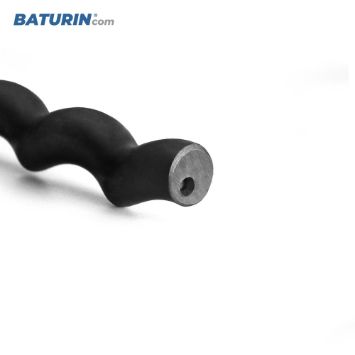

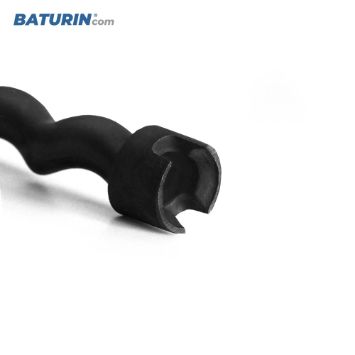

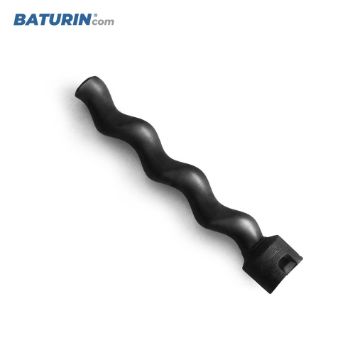

B4-1.5 SERIES
ROTOR B4-1.5 HIGH ALLOY
- Part no. - 002.415.01
- Product Name - B4-1,5 L Rotor High Alloy
- Weight - 0,59 kg
- Rotor Length - 201 mm
- Rotor Diameter - 35 mm
- Grain Size (max) - 2 mm
- Capacity (at 400 rpm) - 10 lit/min
- Capacity (at 200 rpm) - 5 lit/min
- Working pressure (max) - 15 bar

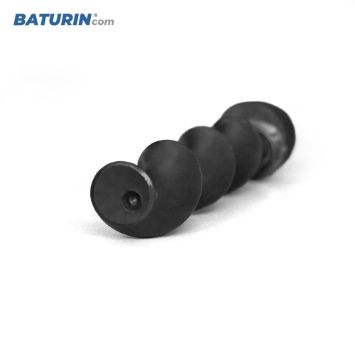

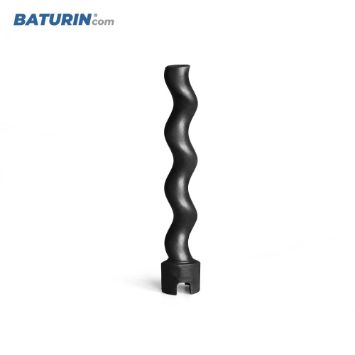

ROTOR BATURIN ® B4-1.5 HIGH ALLOY
ROTOR BATURIN ® B4-1.5 HIGH ALLOY
ROTOR BATURIN ® B4-1.5 HIGH ALLOY
ROTOR BATURIN ® B4-1.5 HIGH ALLOY
ROTOR BATURIN ® B4-1.5 HIGH ALLOY

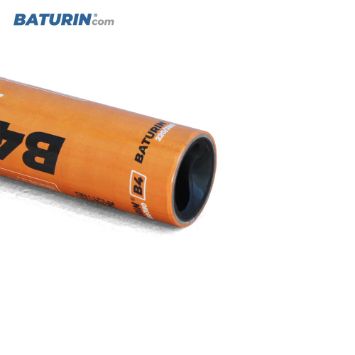

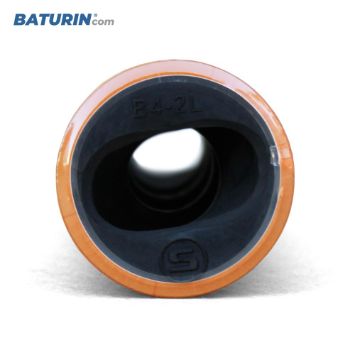

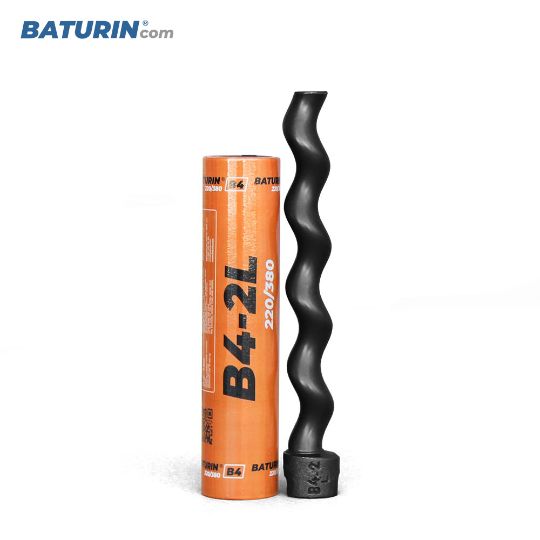

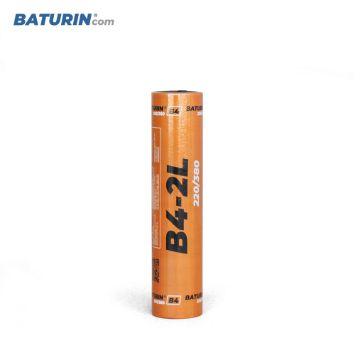

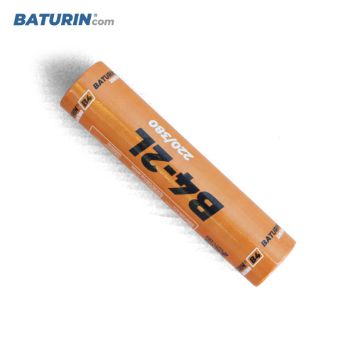

B4-2L SERIES

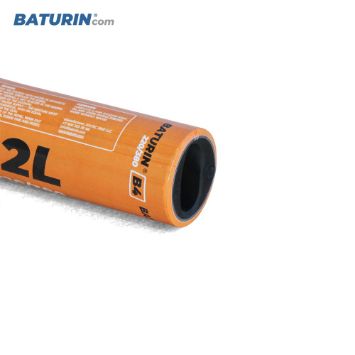

STATOR B4-2L
SKIN
- Part no. - 001.420.01
- Product Name - B4-2 L Stator Maintenance Free
- Weight - 0,92 kg
- Stator Length - 211 mm
- Stator Diameter - 48 mm
- Grain Size (max) - 2 mm
- Capacity (at 400 rpm) - 10 lit/min
- Capacity (at 200 rpm) - 5 lit/min
- Working pressure (max) - 20 bar
STATOR BATURIN ® B4-2L MAINTENANCE FREE
STATOR BATURIN ® B4-2L MAINTENANCE FREE
STATOR BATURIN ® B4-2L MAINTENANCE FREE
STATOR BATURIN ® B4-2L MAINTENANCE FREE
STATOR BATURIN ® B4-2L MAINTENANCE FREE

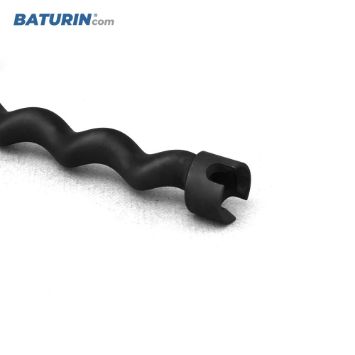

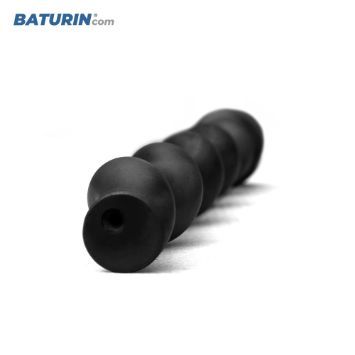

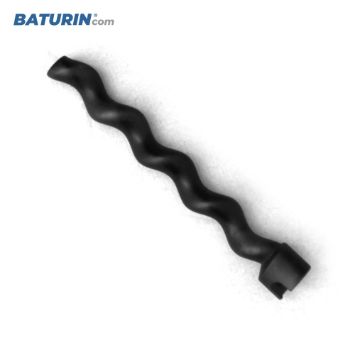

B4-2L SERIES
ROTOR B4-2L
HIGH ALLOY
- Part no. - 002.420.01
- Product Name - B4-2 L Rotor High Alloy
- Weight - 0,71 kg
- Rotor Length - 251 mm
- Rotor Diameter - 35 mm
- Grain Size (max) - 2 mm
- Capacity (at 400 rpm) - 10 lit/min
- Capacity (at 200 rpm) - 5 lit/min
- Working pressure (max) - 20 bar

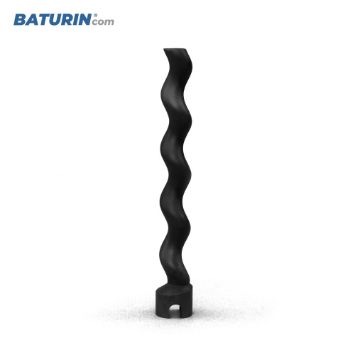

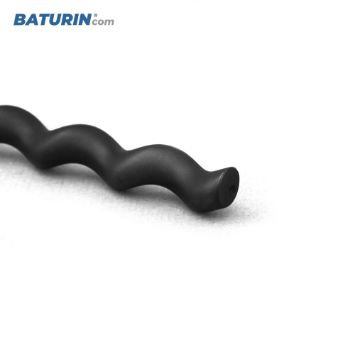

ROTOR BATURIN ® B4-2L HIGH ALLOY
ROTOR BATURIN ® B4-2L HIGH ALLOY
ROTOR BATURIN ® B4-2L HIGH ALLOY
ROTOR BATURIN ® B4-2L HIGH ALLOY
ROTOR BATURIN ® B4-2L HIGH ALLOY

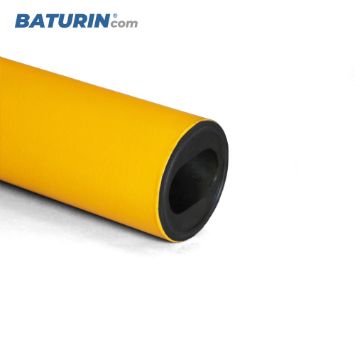

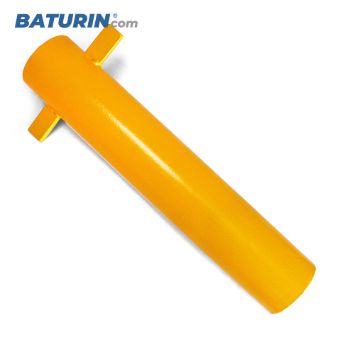

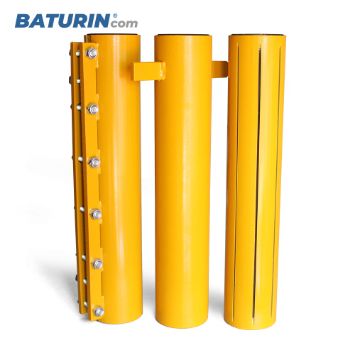

2L6 SERIES

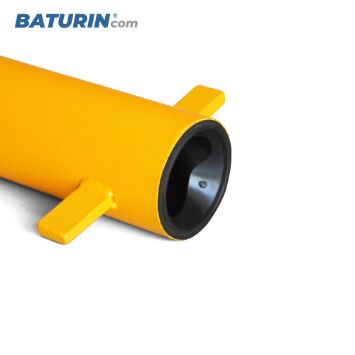

STATOR 2L6
MAINTENANCE FREE
- Part no. - 001.206.01
- Product Name - 2L6 Stator Maintenance Free
- Weight - 7 kg
- Stator Length - 534 mm
- Stator Diameter - 101 mm
- Grain Size (max) - 6 mm
- Capacity (at 400 rpm) - 60 lit/min
- Capacity (at 200 rpm) - 30 lit/min
- Working pressure (max) - 20 bar

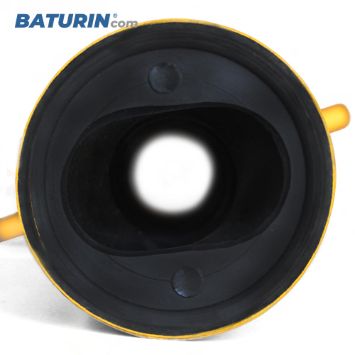

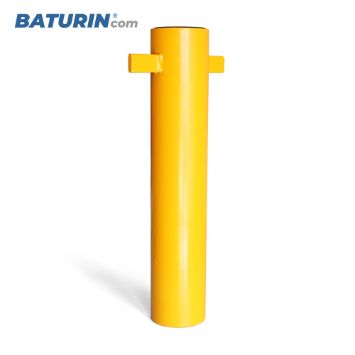

STATOR BATURIN ® 2L6 MAINTENANCE FREE
STATOR BATURIN ® 2L6 MAINTENANCE FREE
STATOR BATURIN ® 2L6 MAINTENANCE FREE
STATOR BATURIN ® 2L6 MAINTENANCE FREE
STATOR BATURIN ® 2L6 MAINTENANCE FREE
STATOR BATURIN ® 2L6 MAINTENANCE FREE

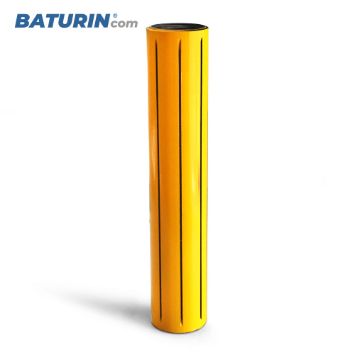

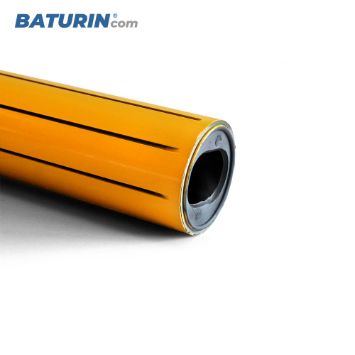

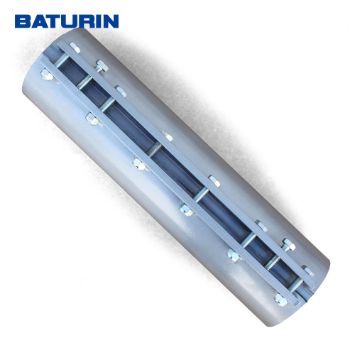

2L6 SERIES

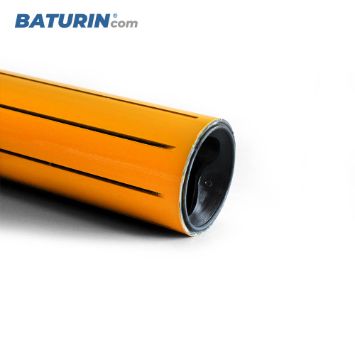

STATOR 2L6
SLOTTED
- Part no. - 001.206.02
- Product Name - 2L6 Stator Slotted
- Weight - 6,50 kg
- Stator Length - 534 mm
- Stator Diameter - 101 mm
- Grain Size (max) - 6 mm
- Capacity (at 400 rpm) - 60 lit/min
- Capacity (at 200 rpm) - 30 lit/min
- Working pressure (max) - 20 bar

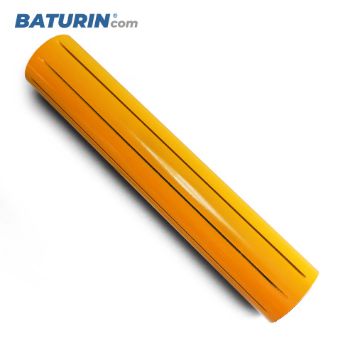

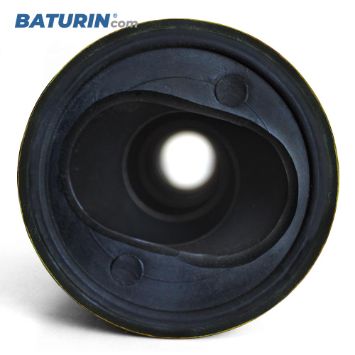

STATOR BATURIN ® 2L6 SLOTTED
STATOR BATURIN ® 2L6 SLOTTED
STATOR BATURIN ® 2L6 SLOTTED
STATOR BATURIN ® 2L6 SLOTTED
STATOR BATURIN ® 2L6 SLOTTED
STATOR BATURIN ® 2L6 SLOTTED

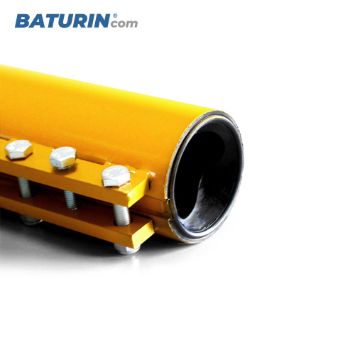

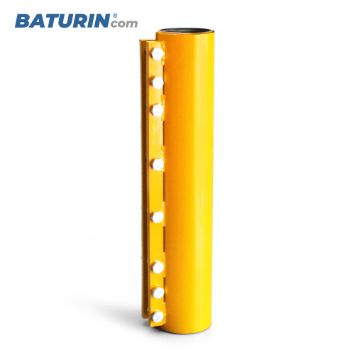

2L6 SERIES

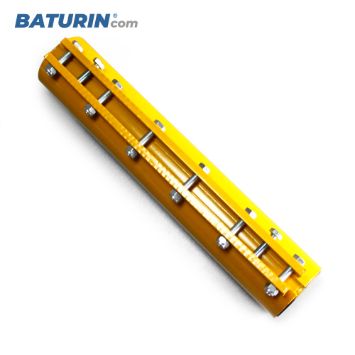

STATOR 2L6
INTEGRA
- Part no. - 001.206.03
- Product Name - 2L6 Stator Integrated
- Weight - 9,47 kg
- Stator Length - 534 mm
- Stator Diameter - 101 mm
- Grain Size (max) - 6 mm
- Capacity (at 400 rpm) - 60 lit/min
- Capacity (at 200 rpm) - 30 lit/min
- Working pressure (max) - 20 bar

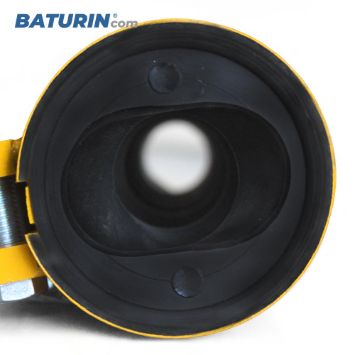

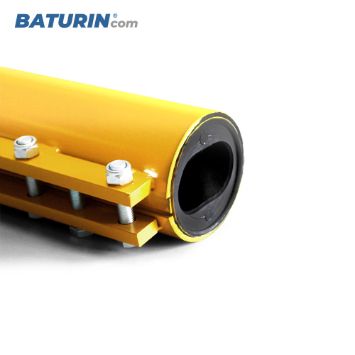

STATOR BATURIN ® 2L6 INTEGRATED
STATOR BATURIN ® 2L6 INTEGRATED
STATOR BATURIN ® 2L6 INTEGRATED
STATOR BATURIN ® 2L6 INTEGRATED
STATOR BATURIN ® 2L6 INTEGRATED
STATOR BATURIN ® 2L6 INTEGRATED

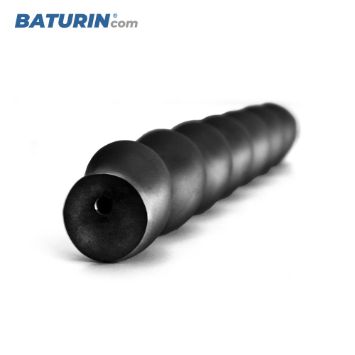

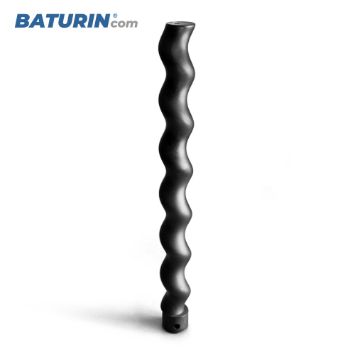

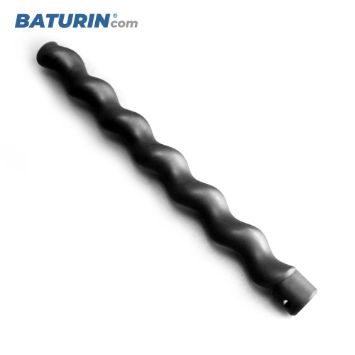

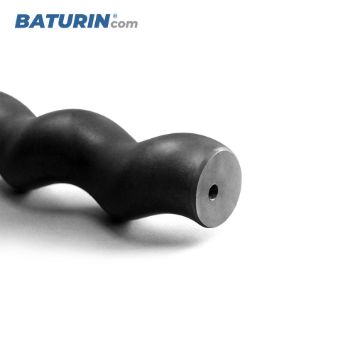

2L6 SERIES
ROTOR 2L6
HIGH ALLOY
- Part no. - 002.206.01
- Product Name - 2L6 Rotor High Alloy
- Weight - 8,5 kg
- Rotor Length - 620 mm
- Rotor Diameter - 49,5 mm
- Grain Size (max) - 6 mm
- Capacity (at 400 rpm) - 60 lit/min
- Capacity (at 200 rpm) - 30 lit/min
- Working pressure (max) - 20 bar

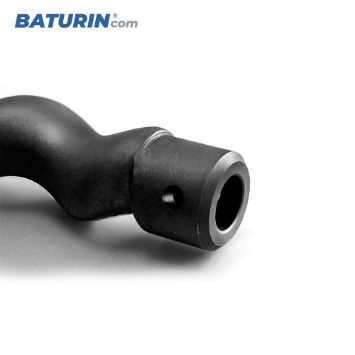

ROTOR BATURIN ® 2L6 HIGH ALLOY
ROTOR BATURIN ® 2L6 HIGH ALLOY
ROTOR BATURIN ® 2L6 HIGH ALLOY
ROTOR BATURIN ® 2L6 HIGH ALLOY
ROTOR BATURIN ® 2L6 HIGH ALLOY

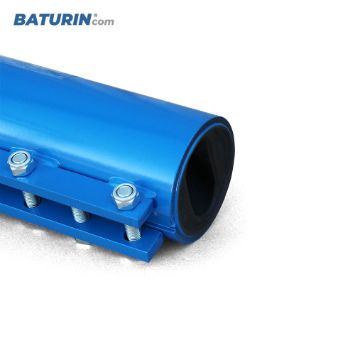

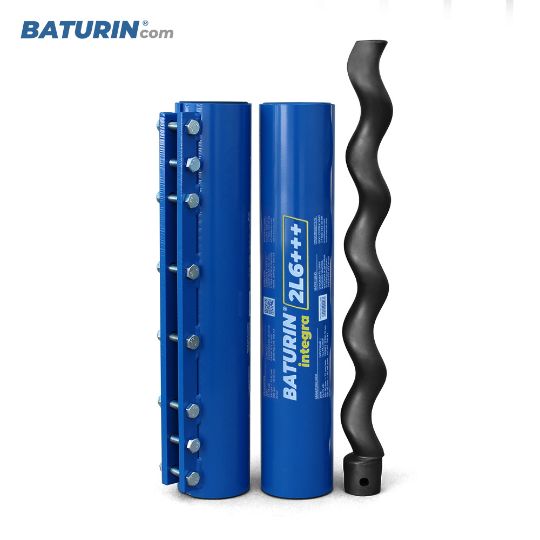

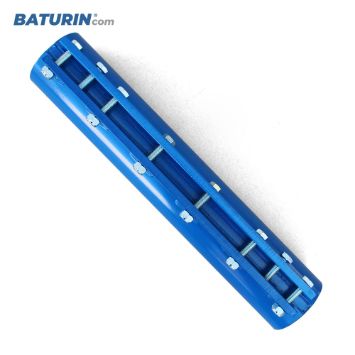

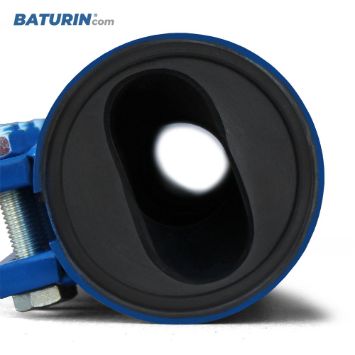

2L6+++ SERIES
STATOR 2L6+++
INTEGRA
- Part no. - 001.266.03
- Product Name - 2L6+++ Stator Integrated
- Weight - 9,56 kg
- Stator Length - 534 mm
- Stator Diameter - 101 mm
- Grain Size (max) - 6 mm
- Capacity (at 400 rpm) - 110 lit/min
- Capacity (at 200 rpm) - 55 lit/min
- Working pressure (max) - 20 bar

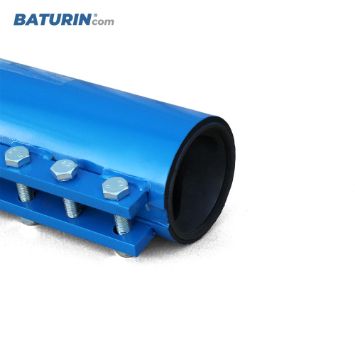

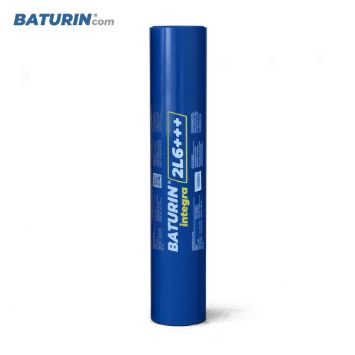

STATOR BATURIN ® 2L6+++ INTEGRATED
STATOR BATURIN ® 2L6+++ INTEGRATED
STATOR BATURIN ® 2L6+++ INTEGRATED
STATOR BATURIN ® 2L6+++ INTEGRATED
STATOR BATURIN ® 2L6+++ INTEGRATED

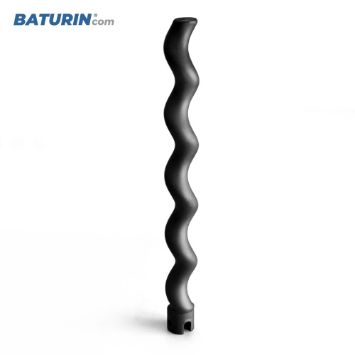

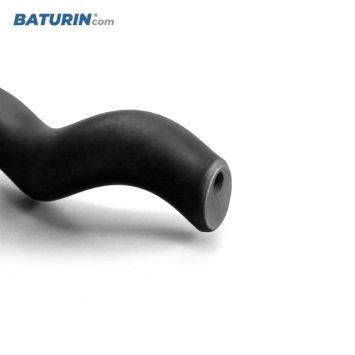

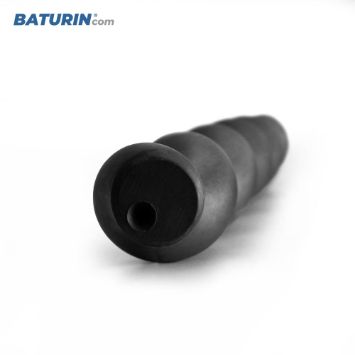

2L6+++ SERIES
ROTOR 2L6+++
CASTED
- Part no. - 002.266.01
- Product Name - 2L6+++ Rotor High Alloy
- Weight - 7,0 kg
- Rotor Length - 620 mm
- Rotor Diameter - 49,5 mm
- Grain Size (max) - 6 mm
- Capacity (at 400 rpm) - 110 lit/min
- Capacity (at 200 rpm) - 55 lit/min
- Working pressure (max) - 20 bar

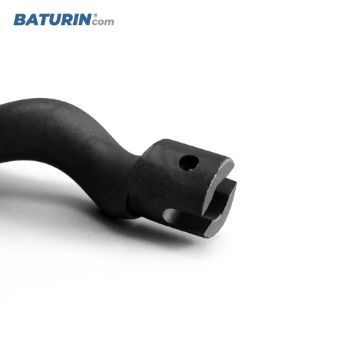

ROTOR BATURIN ® 2L6+++ HIGH ALLOY
ROTOR BATURIN ® 2L6+++ HIGH ALLOY
ROTOR BATURIN ® 2L6+++ HIGH ALLOY
ROTOR BATURIN ® 2L6+++ HIGH ALLOY
ROTOR BATURIN ® 2L6+++ HIGH ALLOY
2L8 SERIES
STATOR 2L8
INTEGRA
- Part no. - 001.280.03
- Product Name - 2L8 Stator Integrated
- Weight - 35,0 kg
- Stator Length - 650 mm
- Stator Diameter - 190 mm
- Grain Size (max) - 10 mm
- Capacity (at 400 rpm) - 450 lit/min
- Capacity (at 200 rpm) - 220 lit/min
- Working pressure (max) - 20 bar

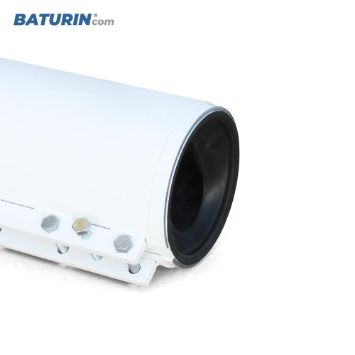

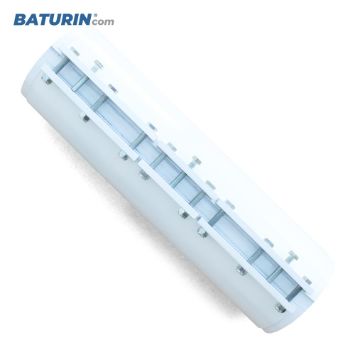

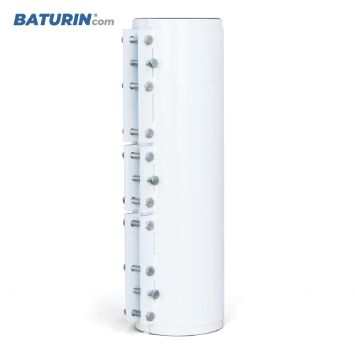

STATOR BATURIN ® 2L8 INTEGRATED
STATOR BATURIN ® 2L8 INTEGRATED
STATOR BATURIN ® 2L8 INTEGRATED
STATOR BATURIN ® 2L8 INTEGRATED
STATOR BATURIN ® 2L8 INTEGRATED
STATOR BATURIN ® 2L8 INTEGRATED
2L8 SERIES
ROTOR 2L8
HIGH ALLOY
- Part no. - 002.280.01
- Product Name - 2L8 Rotor High Alloy
- Weight - 29,5 kg
- Rotor Length - 742 mm
- Rotor Diameter - 83 mm
- Grain Size (max) - 10 mm
- Capacity (at 400 rpm) - 450 lit/min
- Capacity (at 200 rpm) - 220 lit/min
- Working pressure (max) - 20 bar

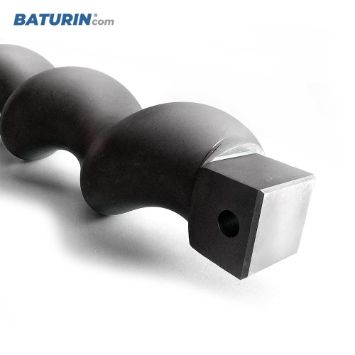

ROTOR BATURIN ® 2L8 HIGH ALLOY
ROTOR BATURIN ® 2L8 HIGH ALLOY
ROTOR BATURIN ® 2L8 HIGH ALLOY
ROTOR BATURIN ® 2L8 HIGH ALLOY
ROTOR BATURIN ® 2L8 HIGH ALLOY
60/12L SERIES
STATOR 60/12L
INTEGRA
- Part no. - 002.612.02
- Product Name - 60/12 L Stator High Alloy
- Weight - 19,5 kg
- Stator Length - 535 mm
- Stator Diameter - 145 mm
- Grain Size (max) - 10 mm
- Capacity (at 400 rpm) - 270 lit/min
- Capacity (at 200 rpm) - 130 lit/min
- Working pressure (max) - 20 bar
60/12L SERIES
STATOR 60/12L
MAINTENANCE FREE
- Part no. - 002.612.02
- Product Name - 60/12 L Stator High Alloy
- Weight - 17,5 kg
- Stator Length - 535 mm
- Stator Diameter - 145 mm
- Grain Size (max) - 10 mm
- Capacity (at 400 rpm) - 270 lit/min
- Capacity (at 200 rpm) - 130 lit/min
- Working pressure (max) - 20 bar

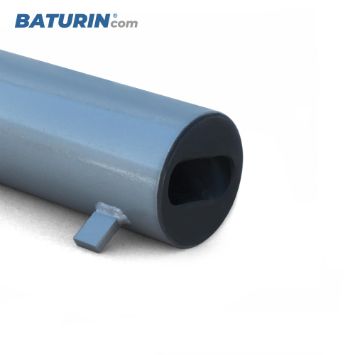

STATOR BATURIN ® 60/12L MAINTENANCE FREE
STATOR BATURIN ® 60/12L MAINTENANCE FREE
STATOR BATURIN ® 60/12L MAINTENANCE FREE
STATOR BATURIN ® 60/12L MAINTENANCE FREE
STATOR BATURIN ® 60/12L MAINTENANCE FREE
60/12L SERIES
ROTOR 60/12L
HIGH ALLOY
- Part no. - 002.612.01
- Product Name - 60/12 L Rotor High Alloy
- Weight - 10,0 kg
- Rotor Length - 665 mm
- Rotor Diameter - 54 mm
- Grain Size (max) - 10 mm
- Capacity (at 400 rpm) - 270 lit/min
- Capacity (at 200 rpm) - 130 lit/min
- Working pressure (max) - 20 bar

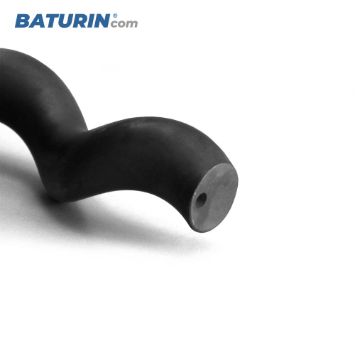

ROTOR BATURIN ® 60/12L HIGH ALLOY
ROTOR BATURIN ® 60/12L HIGH ALLOY
ROTOR BATURIN ® 60/12L HIGH ALLOY
ROTOR BATURIN ® 60/12L HIGH ALLOY
ROTOR BATURIN ® 60/12L HIGH ALLOY
EH 800 SERIES
STATOR EH 800
MAINTENANCE FREE
- Part no. -
- Product Name - EH 800 Stator Maintenance Free
- Weight - 13,5 kg
- Stator Length - 442 mm
- Stator Diameter - 152 mm
- Grain Size (max) - 24 mm
- Capacity (at 300 rpm) - 17 m3/h
- Working pressure (max) - 12 bar
EH 800 SERIES
ROTOR EH 800
HIGH ALLOY
- Part no. -
- Product Name - EH 800 Rotor High Alloy
- Weight - 13,5 kg
- Rotor Length - 552 mm
- Rotor Diameter - 65 mm
- Grain Size (max) - 24 mm
- Capacity (at 300 rpm) - 17 m3/h
- Working pressure (max) - 12 bar
BATURIN © 2026 All rights reserved.
